SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

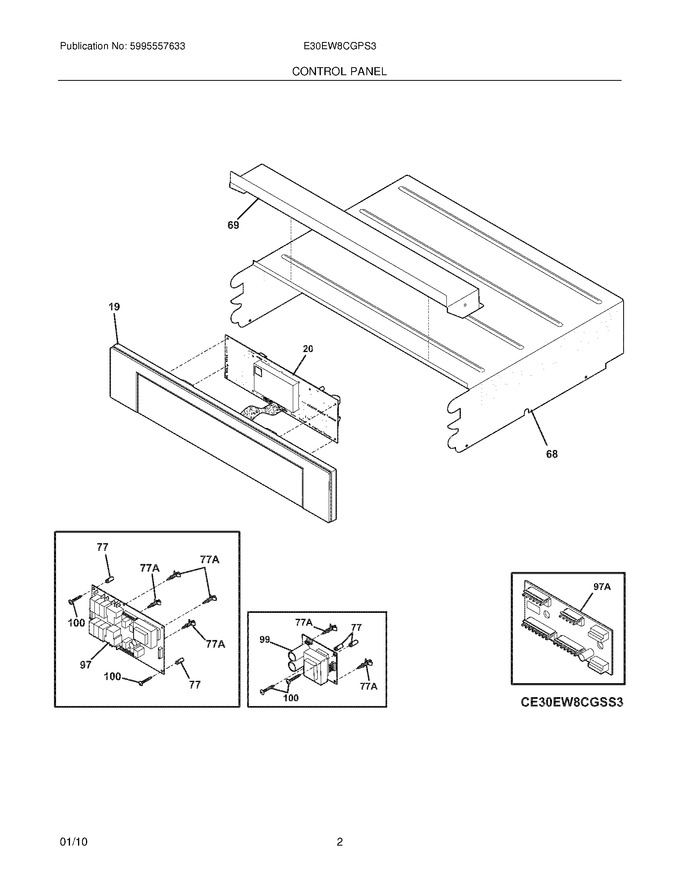

19	318244833		Control Panel,assembly ,w/stainless Trm				$ 819.05
68	318237220		Housing,top/control		Appelez-nous	-
69	318237320		Shield,control		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
100	5303297477		Screw,6-20 X 1 1/4				$ 15.17
77A	316114100		Spacer				$ 60.96
F20	316576631		Controller,electronic ,dual Oven ,es610w6   (Replaces: 316516551)				$ 526.91
F97	316443926		Board,relay ,dual Oven				$ 457.56
F97A	316574700		Segment,interface ,(pcba)				$ 224.81
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
FNI	318402380		Harness,wiring ,communication ,6 Connectors				$ 89.93
FNI	318532113		Harness,wiring ,communication ,13 Connectors				$ 198.70
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	318574400		Support,segment Board		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
