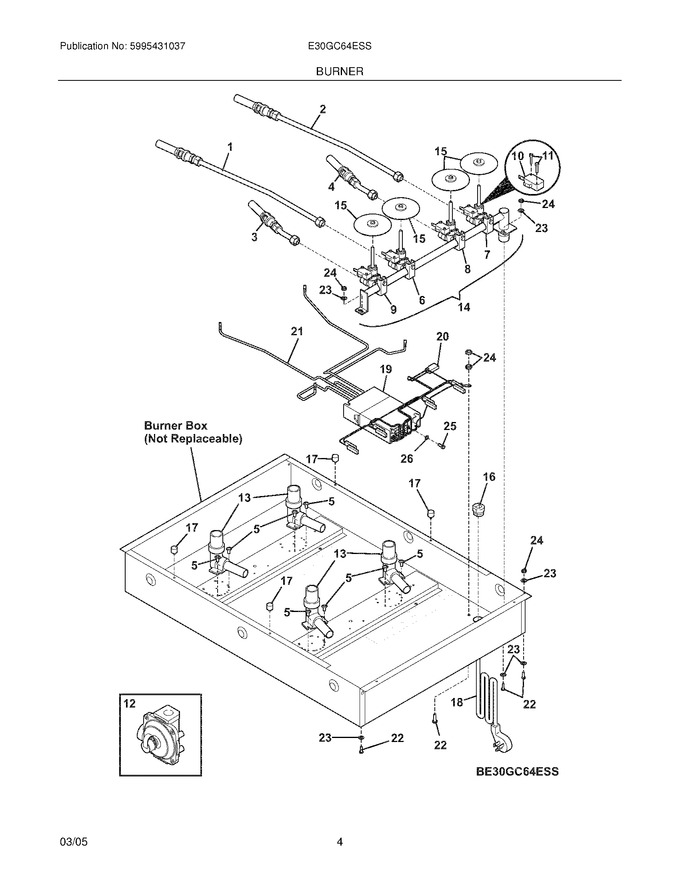

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304446006		Tubing Assembly,burner ,left Front		Appelez-nous	-
2	5304446007		Tubing Assembly,burner ,left Rear				$ 127.19
3	5304446008		Tubing Assembly,burner ,right Front				$ 157.12
4	5304446009		Tubing Assembly,burner ,right Rear		Appelez-nous	-
5	5304446019		Screw,phil Trs ,no.8-3/8 ,(8)		Appelez-nous	-
6	5304446040		Valve Assembly,burner ,left Front ,w/ignite Switch				$ 233.82
7	5304446041		Valve Assembly,burner ,left Rear ,w/ignite Switch				$ 198.11
8	5304446042		Valve Assembly,burner ,right Rear ,w/ignite Switch		Appelez-nous	-
9	5304446043		Valve Assembly,burner ,right Front ,w/ignite Switch		Appelez-nous	-
10	5304446014		Switch,ignitor ,(4)				$ 72.98
11	5304446023		Screw,ignitor Switch ,(8)		Appelez-nous	-
12	5304446036		Regulator,pressure				$ 188.53
13	5304446001		Base,burner ,(4)				$ 180.80
14	5304446035		Manifold,assembly ,w/valves		Appelez-nous	-
15	5304446030		Protector,burner Valve ,spill		Appelez-nous	-
16	5304446017		Bushing,strain Relief		Appelez-nous	-
17	5304446022		Bumper,snap In ,rubber ,(4)		Appelez-nous	-
18	5304446005		Cord,power Supply		Appelez-nous	-
19	5304445999		Module,assembly ,ignitor Spark				$ 449.14
20	5304446003		Harness,wiring		Appelez-nous	-
21	5304446004		Harness,assembly ,ignitor Wire		Appelez-nous	-
22	5304446021		Screw,phil Pan ,no.8-32 X 1/2 ,(4)		Appelez-nous	-
23	5304446024		Washer,no.8 X 7/16 Od ,3/64 T ,zinc ,(6)		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32 ,(5)		Appelez-nous	-
25	5304446020		Screw,phil Pan ,no.8-3/8		Appelez-nous	-
26	5304446016		Washer,nylon		Appelez-nous	-
NI	5304446018		Hook & Loop,pair ,2`` X 3``		Appelez-nous	-
NI	5304446027		Washer,burner Valve ,(4)		Appelez-nous	-
NI	5304446039		Conversion Kit,lp Gas		Appelez-nous	-
NI	5304446025		Tool,burner Ring ,removal				$ 126.73
