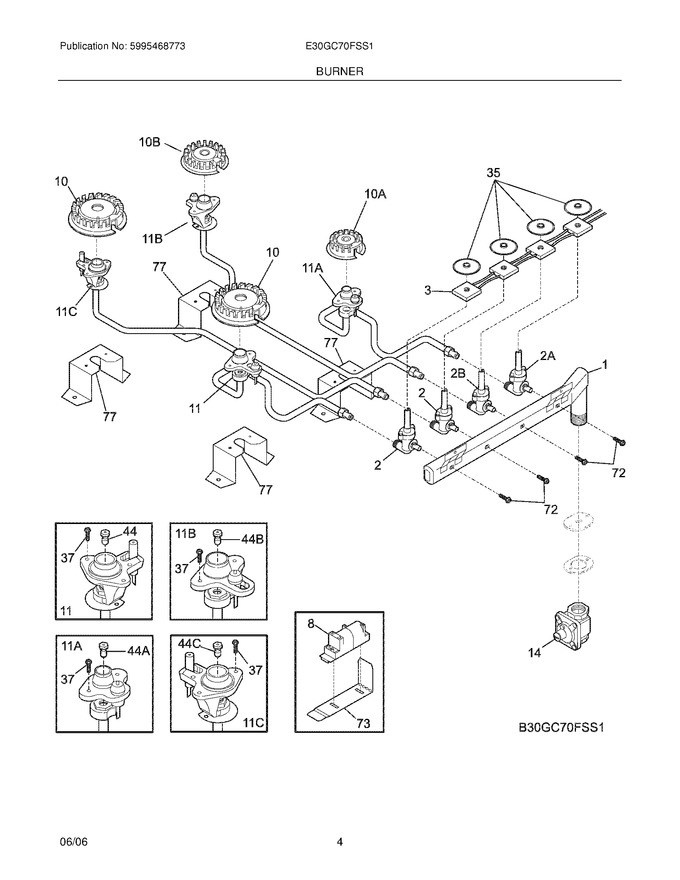

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177009		Manifold Pipe				$ 126.63
35	318146301		Bushing				$ 34.34
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	318362300		Orifice,top Burner ,17k		Appelez-nous	-
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
73	318024201		Bracket,spark Module				$ 9.08
77	318192606		Bracket,burner Mtg ,(4)		Appelez-nous	-
44A	316237903		Orifice-top Burner,5k				$ 67.83
44B	316237902		Orifice,top Burner ,9.5k				$ 65.22
44C	318362302		Orifice,top Burner ,16k		Appelez-nous	-
F10	316223300		Burner,sealed ,16/17k				$ 117.66
F10A	316206400		Burner,sealed ,5k		Appelez-nous	-
F10B	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	318306237		Ignitor/orifice Assy.,top Burner ,right Front,17k ,w/holder ,tube		Appelez-nous	-
F11A	318221332		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube				$ 146.84
F11B	318221334		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube				$ 166.43
F11C	318306236		Ignitor/orifice Assy.,top Burner ,left Front,16k ,w/holder ,tube				$ 149.00
F14	5308007974		Regulator-pressure				$ 309.02
F2	318233940		Valve,top Burner ,16/17k				$ 162.23
F2A	318233900		Valve,top Burner ,5000 Btu				$ 161.53
F2B	318233910		Valve,top Burner ,9500 Btu				$ 132.56
F3	318232604		Wiring Harness,w/igntr Switch				$ 292.73
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
NI	318127428		Lp Conversion Kit		Appelez-nous	-
NI	318199742		Wiring Harness,ignitor		Appelez-nous	-
