02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts

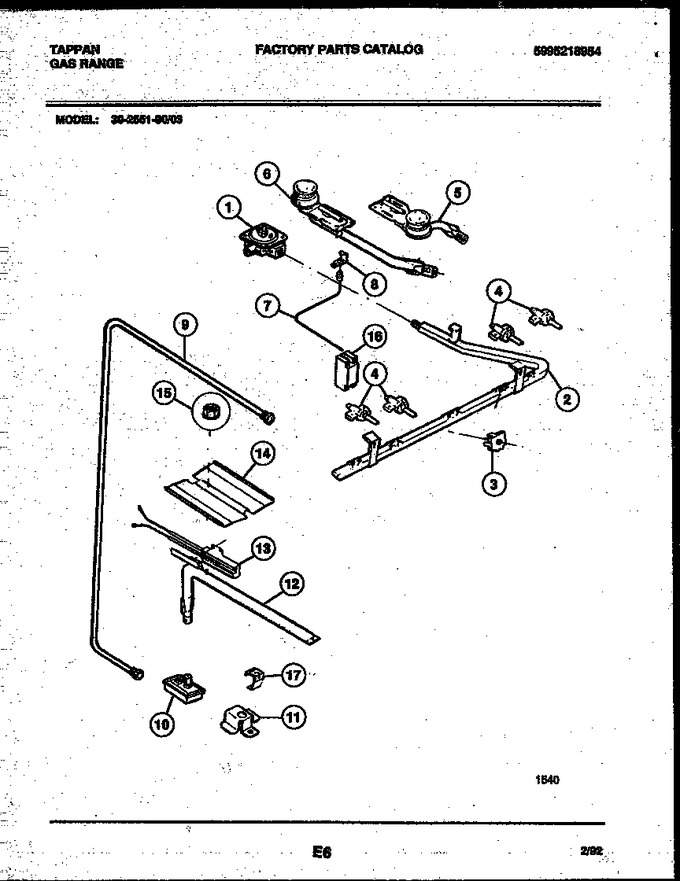

06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303280293 | Control - Regul |
|
- | |||||
| 2 | 5303272435 | Manifold Pipe |
|
- | |||||
| 3 | 5303280577 | Switch-ignitor |
|
- | |||||
| 4 | 5303280578 | Valve-top-2 Pos |
|
- | |||||
| 5 | 5303281615 | Burner-top Front (2) |
|
- | |||||
| 6 | 5303281616 | Burner-top Rear (2) |
|
- | |||||
| 7 | 3200276 | Base, Igniter (2) |
|
- | |||||
| 8 | 3016993 | Retainer-igniter |
|
- | |||||
| 9 | 3203458 | Tube, Alum 3/8 |
|
- | |||||
| 10 | 3203459 | Valve-safety |
|
$ 303.64 | |||||
| 11 | 3131438 | Bracket, Valve |
|
- | |||||
| 12 | 3131439 | Burner-oven |
|
$ 204.59 | |||||
| 13 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 14 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 15 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 16 | 5303200669 | Spark Module |
|
- | |||||
| 17 | 3018603 | Bracket, Oven Burner Support |
|
- | |||||
| 4A | 5303269845 | Screw-valve Mtg (8) (non-illustrated) |
|
- |
