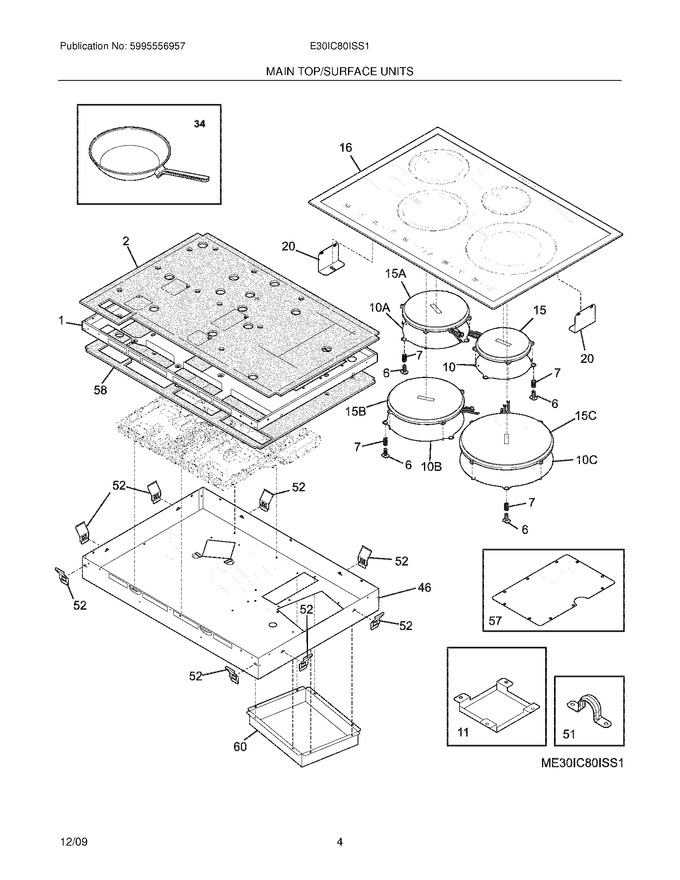

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318533812		Panel,mounting		Appelez-nous	-
2	318330530		Insulation,carrier Panel		Appelez-nous	-
6	318405000		Pin,guide ,elements ,(12)				$ 19.38
7	318534300		Spring,guide Pin ,(12)				$ 7.09
10	318330405		Panel,coil Support ,145mm				$ 59.41
11	318381731		Deflector,air		Appelez-nous	-
20	318121913		Bracket,retainer ,(2)		Appelez-nous	-
34	318526700		Pan,skilet ,induction				$ 439.30
46	318225440		Box,burner		Appelez-nous	-
51	318389600		Bracket,conduit Mtg.				$ 12.76
52	318560900		Spacer,spring ,(8)				$ 14.18
57	318361630		Panel,service				$ 18.56
58	318330531		Insulation,service Panel		Appelez-nous	-
60	318537201		Plenum,plain		Appelez-nous	-
10A	318330406		Panel,coil Support ,180mm		Appelez-nous	-
10B	318330407		Panel,coil Support ,210mm				$ 86.04
10C	318330408		Panel,coil Support ,260mm				$ 136.50
F15	318329210		Element,induction Coil ,145mm ,rh Rear		Appelez-nous	-
F15A	318329201		Element,induction Coil ,180mm ,lh Rear		Appelez-nous	-
F15B	318329202		Element,induction Coil ,210mm ,lh Front		Appelez-nous	-
F15C	318329215		Element,induction Coil ,260mm ,rh Front		Appelez-nous	-
F16	318282589		Main Top Assy,glass/steel ,black/stainless,w/touch Control				$ 1,153.22
FNI	5304470185		Box & Wires Assy		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304424462		Foam Tape,1/2`` X 14``			Immediately	$ 69.77
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304462994		Screw,8-32 X 5/16		Appelez-nous	-
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	318341500		Clamp,power Cord		Appelez-nous	-
NI	316459400		Pad,cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42

    View Diagram in Separate Window       Print Part List
