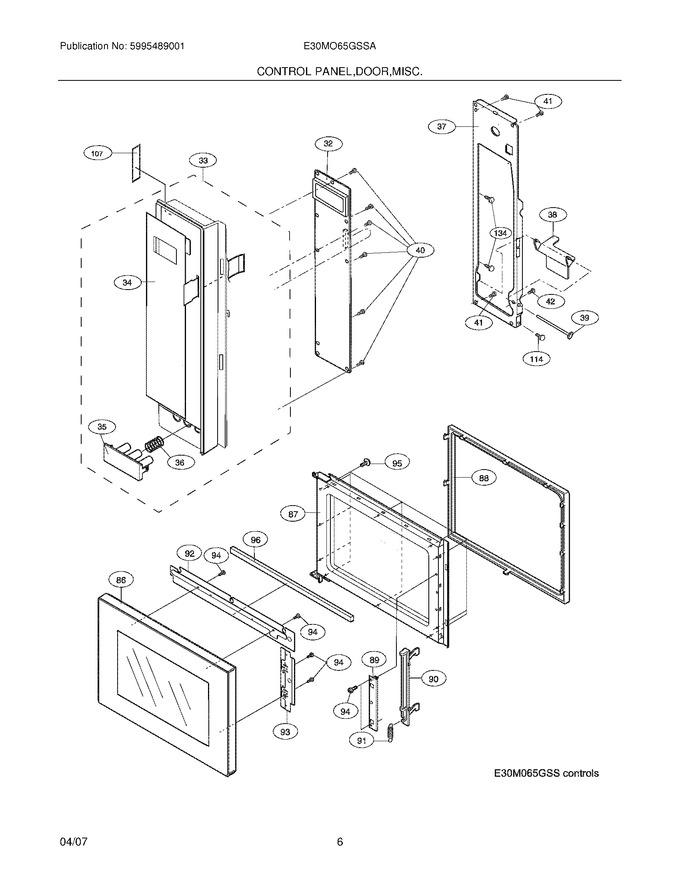

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	5304461138		Button,door				$ 91.18
36	5304440831		Spring,door Button				$ 20.29
37	5304461139		Plate,control Panel ,back		Appelez-nous	-
38	5304461140		Lever,door Button		Appelez-nous	-
39	5304461141		Shaft,door Button		Appelez-nous	-
40	5303319584		Screw,control Panel ,3mm X 10mm		Appelez-nous	-
41	5304461142		Screw,back Plate Mtg ,(5)		Appelez-nous	-
42	5304461143		Screw,cntl Panel Mtg ,(2)		Appelez-nous	-
86	5304461184		Frame Assembly,outer Door				$ 476.23
87	5304461185		Door Panel,inner		Appelez-nous	-
88	5304461186		Cover,choke				$ 168.73
89	5304461187		Angle,latch		Appelez-nous	-
90	5304461188		Head,latch				$ 47.09
91	5304461189		Spring,latch Head		Appelez-nous	-
92	5304461190		Plate,thermal ,upper		Appelez-nous	-
93	5304461191		Plate,thermal ,rh		Appelez-nous	-
94	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
95	5304461192		Screw,3mm X 8mm ,(12)		Appelez-nous	-
96	5304461193		Cushion		Appelez-nous	-
107	5304461202		Label,user Caution		Appelez-nous	-
114	5304440872		Screw,4mm X 8mm		Appelez-nous	-
134	5303318767		Screw,4mm X 12mm		Appelez-nous	-
F32	5304461135		Control Board				$ 451.11
F33	5304461136		Frame,control Panel ,w/key Unit				$ 301.30
F34	5304461137		Keying Unit		Appelez-nous	-
