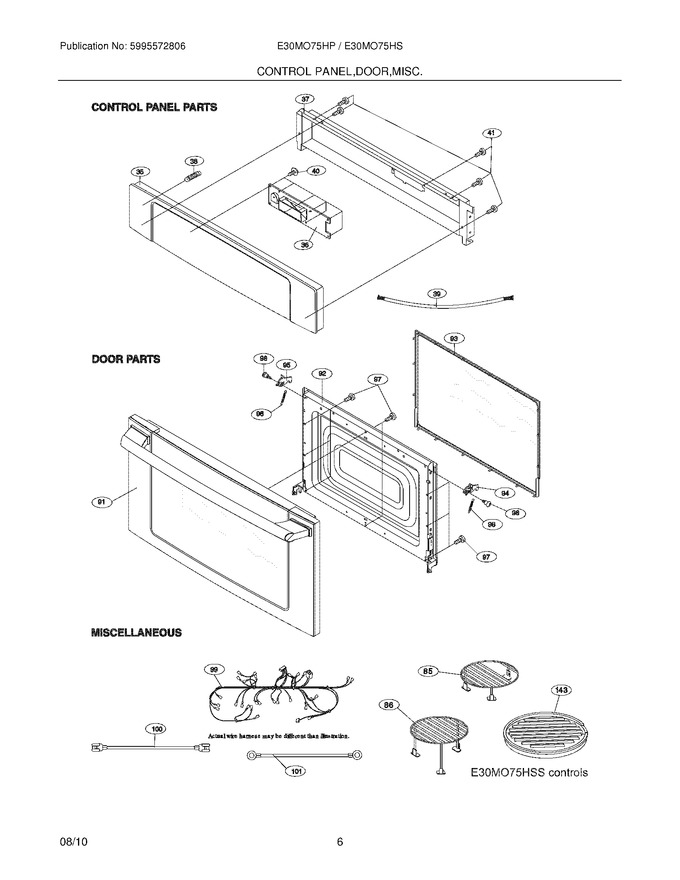

SELECT A DIAGRAM

01 - Cover


03 - Oven, Cabinet


05 - Control Panel, Door, Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
37	5304470558		Bracket,control Mount				$ 169.39
38	5304470560		Spring,grounding				$ 15.08
40	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
41	5304451517		Screw,4 Mm X 8 Mm				$ 17.35
85	5304461194		Rack Assembly,broiling Trivit ,low		Appelez-nous	-
86	5304461195		Rack Assembly,baking ,high				$ 122.39
91	5304471510		Door,outer ,designer Handle				$ 704.22
92	5304471512		Panel,inner Door				$ 357.92
93	5304470579		Frame,inner Door ,choke Cover				$ 87.48
94	5304491054		Latch Head,right Side   (Replaces: 5304470580)				$ 54.58
95	5304490142		Latch Head,left Side   (Replaces: 5304470581)			Immediately	$ 58.56
96	5304470582		Spring,latch Head				$ 5.79
97	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
98	5304470583		Screw				$ 13.01
143	5304461261		Rack,bacon				$ 180.03
F100	5304461198		Wire,high Voltage ,b		Appelez-nous	-
F101	5304461199		Wire,ground ,cooling Fan				$ 25.52
F35	5304471506		Touch Control,designer				$ 1,034.41
F36	5304470557		Display Board,cpu				$ 268.21
F39	5304470561		Wiring Harness,power Supply		Appelez-nous	-
F99	5304471513		Wiring Harness,main		Appelez-nous	-
