SELECT A DIAGRAM

01 - Cover


03 - Body/controls

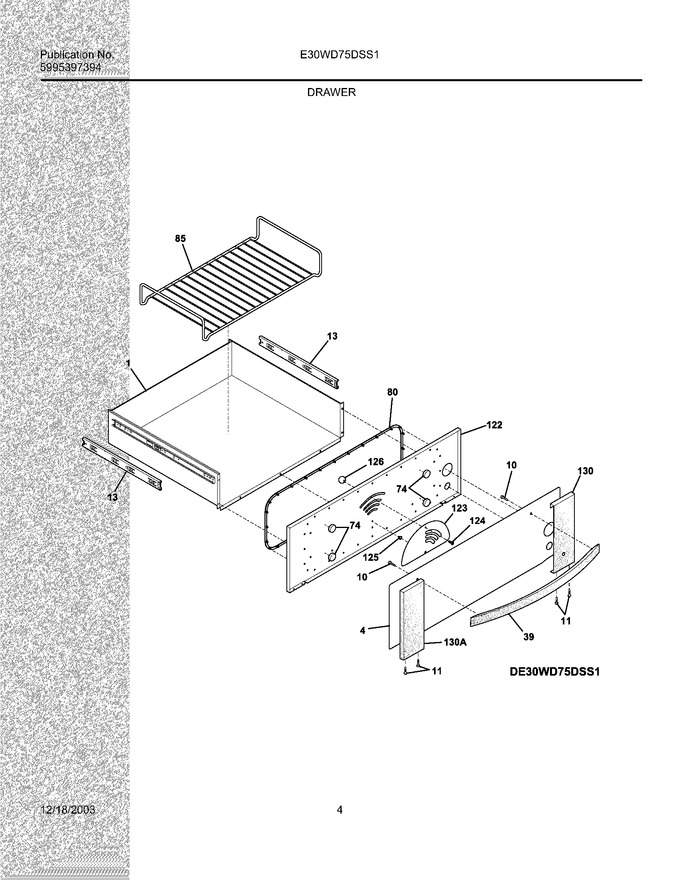

05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318246400		Drawer,warmer ,w/track				$ 624.49
4	318247000		Glass,drawer Panel ,black		Appelez-nous	-
10	5303325168		Screw,10-32 X 5/8 ,handle Mtg		Appelez-nous	-
13	318248400		Channel,drawer Slide ,outer		Appelez-nous	-
39	318238900		Handle,oven Door ,stainless		Appelez-nous	-
74	318141920		Bumper,base				$ 9.61
80	318247300		Gasket,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
122	318247200		Panel,drawer ,interior		Appelez-nous	-
123	318247100		Panel,control ,humidity		Appelez-nous	-
126	318251100		Handle,control ,humidity		Appelez-nous	-
130	318246800		Panel,drawer Front ,stainless ,rh Side		Appelez-nous	-
F126	5304436029		Screw,handle Mtg		Appelez-nous	-
F130	318246801		Panel,drawer Front ,stainless ,lh Side		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	5303323175		Adhesive Tape,1`` Lg.		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
