SELECT A DIAGRAM

01 - Cover


03 - Body/controls

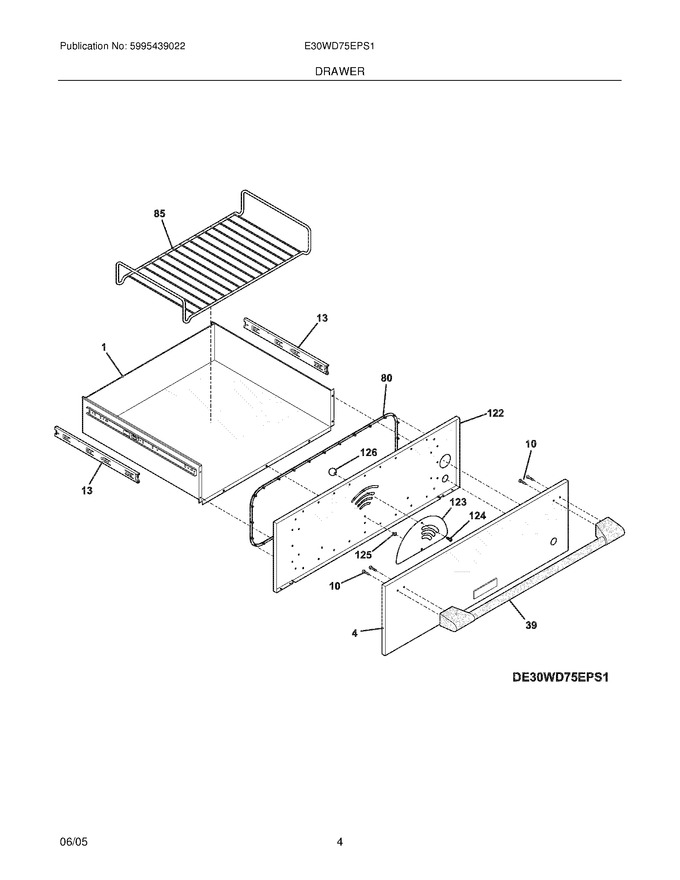

05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318246400		Drawer,warmer ,w/track				$ 624.49
4	318284002		Panel,drawer Front ,stainless ,w/nameplate   (Replaces: 318284001)		Appelez-nous	-
10	5304447921		Screw,no.6-32 X 3/4 ,(4)		Appelez-nous	-
13	318248400		Channel,drawer Slide ,outer		Appelez-nous	-
39	241637906		Handle Assembly,stainless ,w/endcaps		Appelez-nous	-
80	318254400		Gasket,warmer Drawer				$ 157.87
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
122	318281605		Panel,drawer ,interior		Appelez-nous	-
123	318247100		Panel,control ,humidity		Appelez-nous	-
124	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
125	5304436030		Rivet		Appelez-nous	-
126	318251100		Handle,control ,humidity		Appelez-nous	-
F209	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5304453707		Screw,8-32 X 3/8 ,(4)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318303700		Screw,set ,no.10-32 X 3/4 ,(4)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323175		Adhesive Tape,1`` Lg.		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304447922		Washer,flat ,(4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
