SELECT A DIAGRAM

01 - Cover

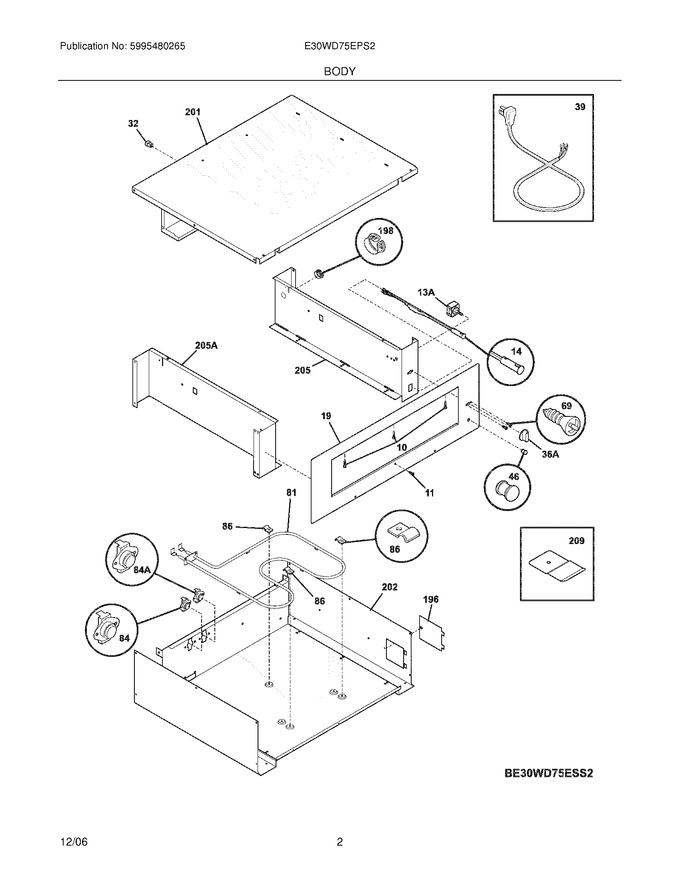

03 - Body


05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304437021		Screw,mounting ,8-18 X 0.25 ,chrome ,(2)		Appelez-nous	-
11	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
19	318246902		Panel,control ,stainless		Appelez-nous	-
32	318228100		Strain Relief				$ 3.36
39	318144005		Cord,service				$ 23.99
46	318250500		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
81	318251000		Element,warmer Drawer		Appelez-nous	-
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
196	318100100		Cover,access		Appelez-nous	-
198	08008009		Bushing,side Panel ,nylon ,rh ,snap		Appelez-nous	-
201	318281505		Wrapper,upper		Appelez-nous	-
202	318281005		Wrapper,lower		Appelez-nous	-
205	318281205		Panel,side ,black ,rh		Appelez-nous	-
209	318247401		Bracket,wall		Appelez-nous	-
36A	318017600		Knob-warmer				$ 30.14
F13A	5304508926		Switch,infinite ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F14	318250400		Light,indicator ,blue		Appelez-nous	-
F205	318281305		Panel,side ,black ,lh		Appelez-nous	-
F209	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
F84	318005106		Thermostat,safety				$ 40.27
F84A	318005103		Thermostat,safety				$ 159.51
NI	318199730		Wiring Harness		Appelez-nous	-
NI	08067961		Fastener,clip Cable		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
