SELECT A DIAGRAM

01 - Cover


03 - Body

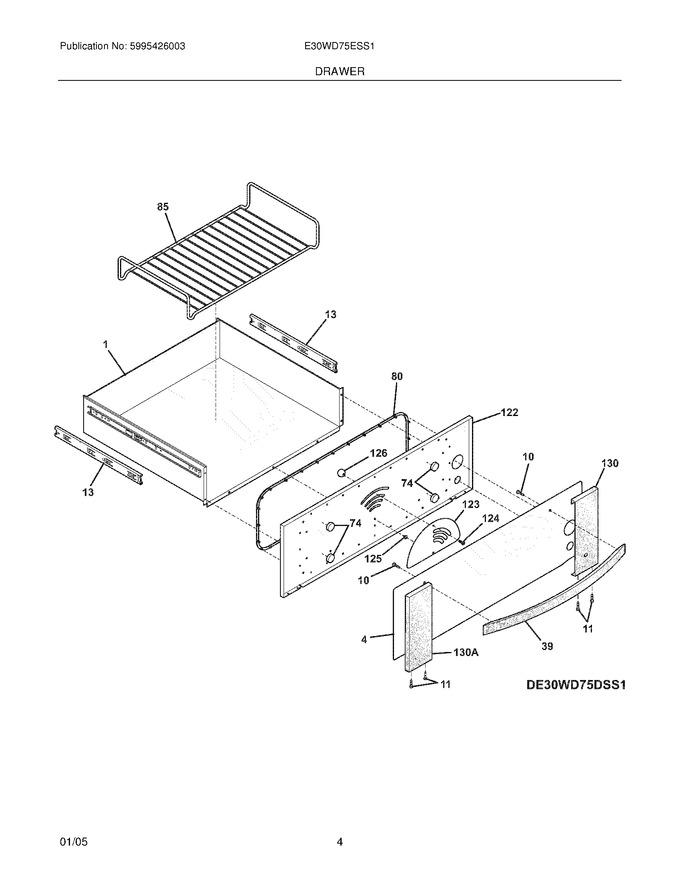

05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318246400		Drawer,warmer ,w/track				$ 624.49
4	318247000		Glass,drawer Panel ,black		Appelez-nous	-
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 5304436876)				$ 14.18
11	5304437019		Screw,flat Socket ,6 X 5/16 ,zp ,(4) ,t/b		Appelez-nous	-
13	318248400		Channel,drawer Slide ,outer		Appelez-nous	-
39	318238902		Handle,oven Door ,stainless		Appelez-nous	-
74	318141920		Bumper,base				$ 9.61
80	318254400		Gasket,warmer Drawer				$ 157.87
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
122	318247200		Panel,drawer ,interior		Appelez-nous	-
123	318247100		Panel,control ,humidity		Appelez-nous	-
124	08002868		Screw 10 X 24 X 1/2				$ 14.18
125	5304436030		Rivet		Appelez-nous	-
126	318251100		Handle,control ,humidity		Appelez-nous	-
130	318246800		Panel,drawer Front ,stainless ,rh Side		Appelez-nous	-
F126	5304436029		Screw,handle Mtg		Appelez-nous	-
F130	318246801		Panel,drawer Front ,stainless ,lh Side		Appelez-nous	-
F209	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323175		Adhesive Tape,1`` Lg.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
