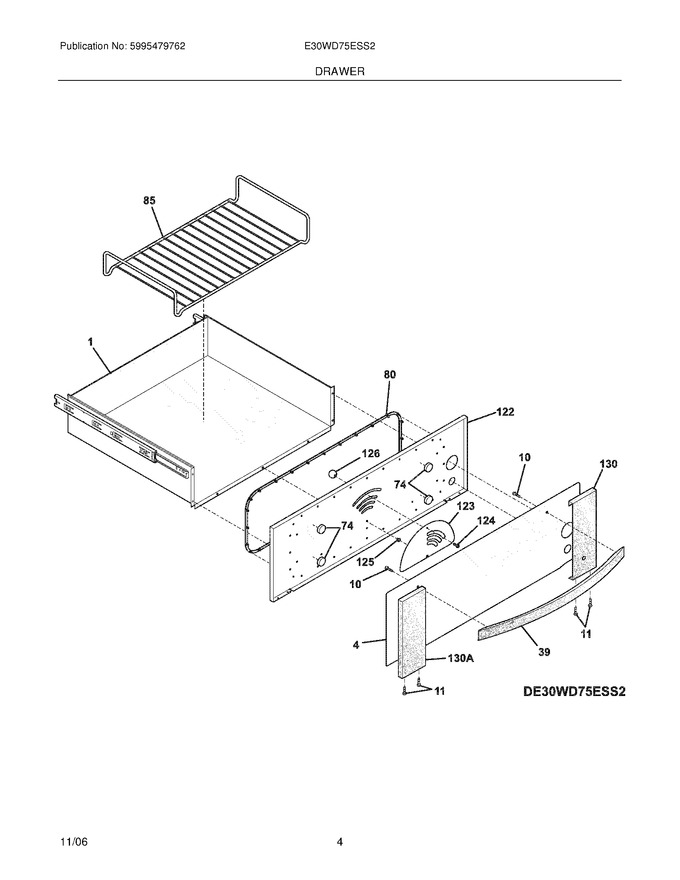

05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318246401		Drawer,warmer ,w/track		Appelez-nous	-
4	318247000		Glass,drawer Panel ,black		Appelez-nous	-
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 5304436876)				$ 14.18
11	5304437019		Screw,flat Socket ,6 X 5/16 ,zp ,(4) ,t/b		Appelez-nous	-
39	318238902		Handle,oven Door ,stainless		Appelez-nous	-
74	318141920		Bumper,base				$ 9.61
80	318254400		Gasket,warmer Drawer				$ 157.87
85	807328301		Rack,warmer Drawer   (Replaces: 318345600)				$ 87.21
122	318247201		Panel,drawer ,interior		Appelez-nous	-
123	318247100		Panel,control ,humidity		Appelez-nous	-
124	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
125	5304436030		Rivet		Appelez-nous	-
126	318251100		Handle,control ,humidity		Appelez-nous	-
130	318246800		Panel,drawer Front ,stainless ,rh Side		Appelez-nous	-
F130	318246801		Panel,drawer Front ,stainless ,lh Side		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323175		Adhesive Tape,1`` Lg.		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
