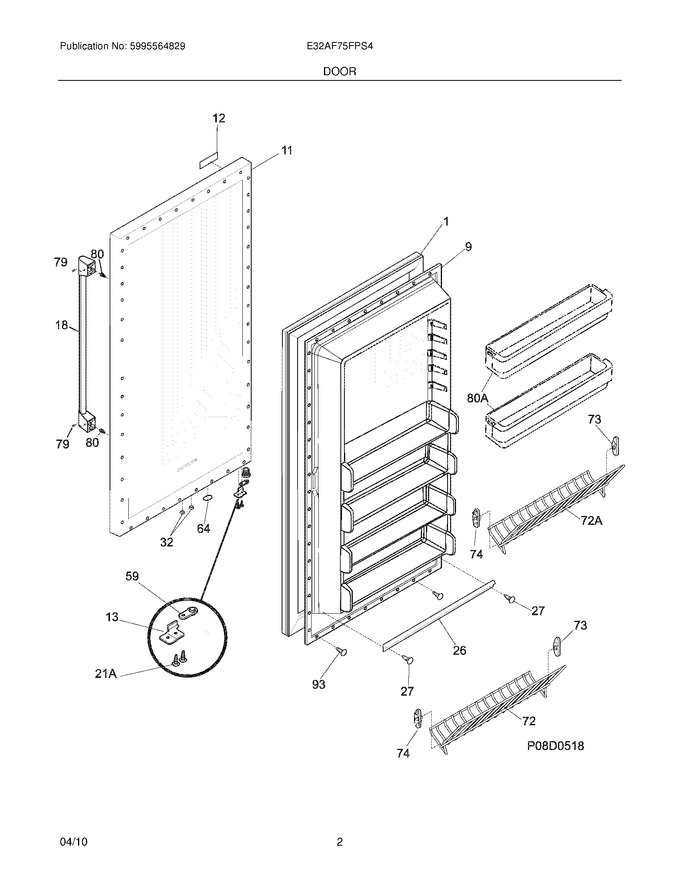

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
9	216527902		Panel-inner Door,frzr				$ 185.22
11	216526572		Panel-outer Door,stainless Steel ,lh		Appelez-nous	-
12	241603101		Label,nameplate ,elux/icon				$ 80.96
13	216974400		Door Stop				$ 46.92
18	241637912		Handle Assembly,stainless ,w/endcaps		Appelez-nous	-
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
59	216974500		Bearing,door Closer				$ 15.54
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297118100		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	5304460608		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 13.39
72A	297118200		Shelf,tiltout ,short ,wire		Appelez-nous	-
80A	216514300		Bin-door,adjustable ,(2)				$ 177.71
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	241601001		Wrench,allen		Appelez-nous	-
