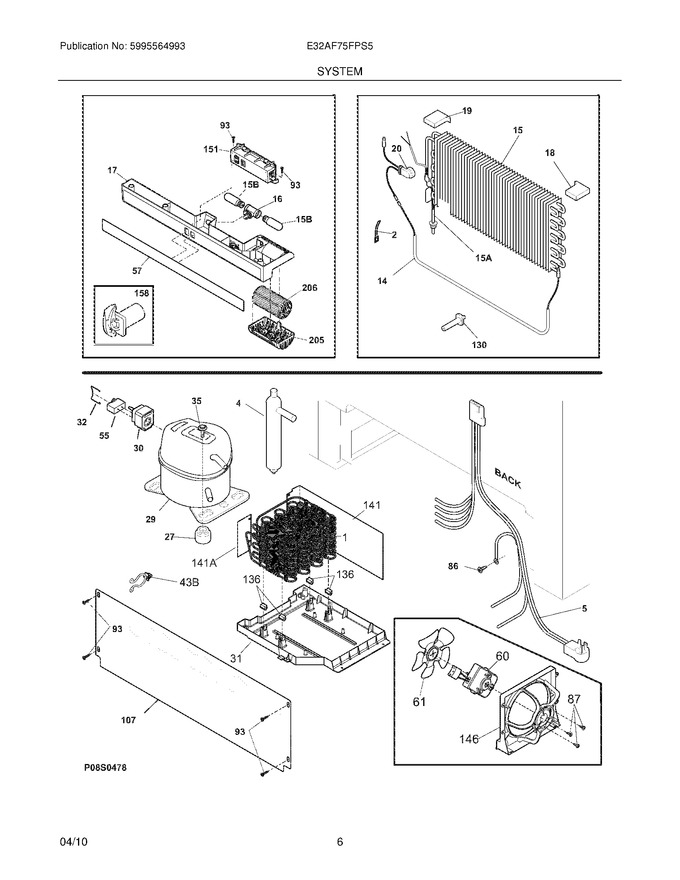

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
17	297110300		Box-control,front		Appelez-nous	-
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	297216600		Thermostat,defrost			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954212		Controller,compressor				$ 106.17
31	297165800		Pan-drain				$ 89.15
32	216649200		Clip,controller				$ 6.30
35	297177200		Bolt,compressor		Appelez-nous	-
57	297110801		Overlay-control Box				$ 98.05
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	297165400		Shield,compressor ,compartment				$ 19.85
130	297244700		Support,evaporator Mtg				$ 4.26
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
141	297164200		Divider,air Flow				$ 26.23
146	297164000		Shroud-fan Orfice				$ 76.97
158	297111000		Standoff		Appelez-nous	-
205	297108500		Cap-air Filter		Appelez-nous	-
206	241504902		Filter-air		Appelez-nous	-
15A	297238700		Heat Exchanger				$ 95.81
15B	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
43B	297315800		Clip,wire				$ 10.13
F1	297152200		Condenser,dynamic				$ 171.33
F14	216730700		Heater-defrost			Immediately	$ 116.44
F141	297194700		Divider,small ,air Flow		Appelez-nous	-
F146	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F151	297283100		Electronic Control,assy		Appelez-nous	-
F29	5304478809		Compressor,w/o Electricals   (Replaces: 297237400)			Immediately	$ 584.96
F5	297171400		Harness-main		Appelez-nous	-
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297108000		Jumper-wire,electronic W/lt		Appelez-nous	-
NI	297110400		Thermistor			Immediately	$ 72.68
NI	241500305		Screw,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	297014500		Plug-suction Line		Appelez-nous	-
