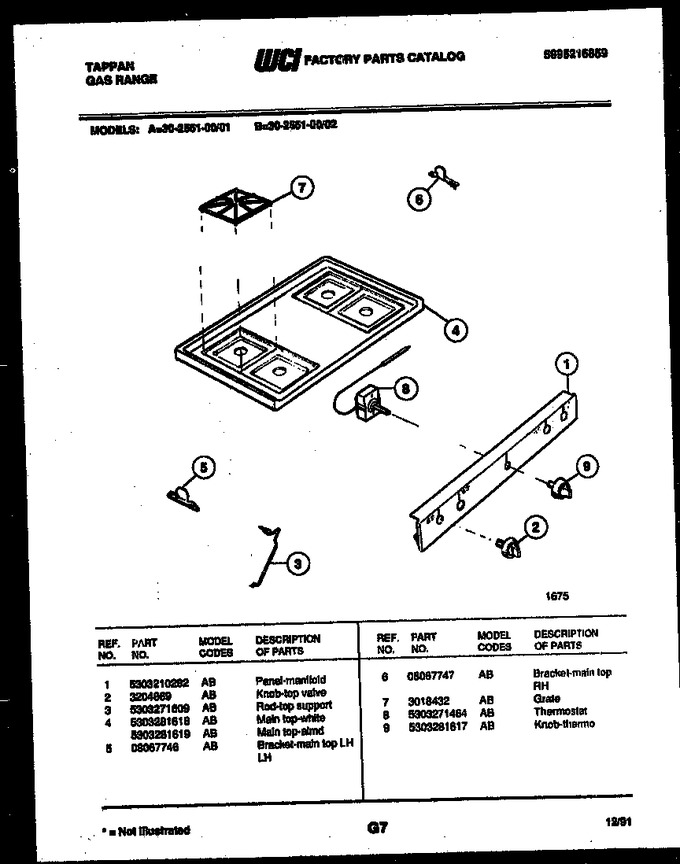

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210282 | Panel, Manifold |
|
- | |||||
| 2 | 3204869 | Knob - Top Valve |
|
- | |||||
| 3 | 5303271609 | Rod-top Support |
|
- | |||||
| 4 | 5303281619 | Main Top-almd |
|
- | |||||
| 5 | 08067746 | Bracket-main Top Lh Lh |
|
- | |||||
| 6 | 08067747 | Bracket, Main Top, Rh |
|
- | |||||
| 7 | 3018432 | Grate |
|
- | |||||
| 8 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 9 | 5303281617 | Knob-thermo |
|
- |
