SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

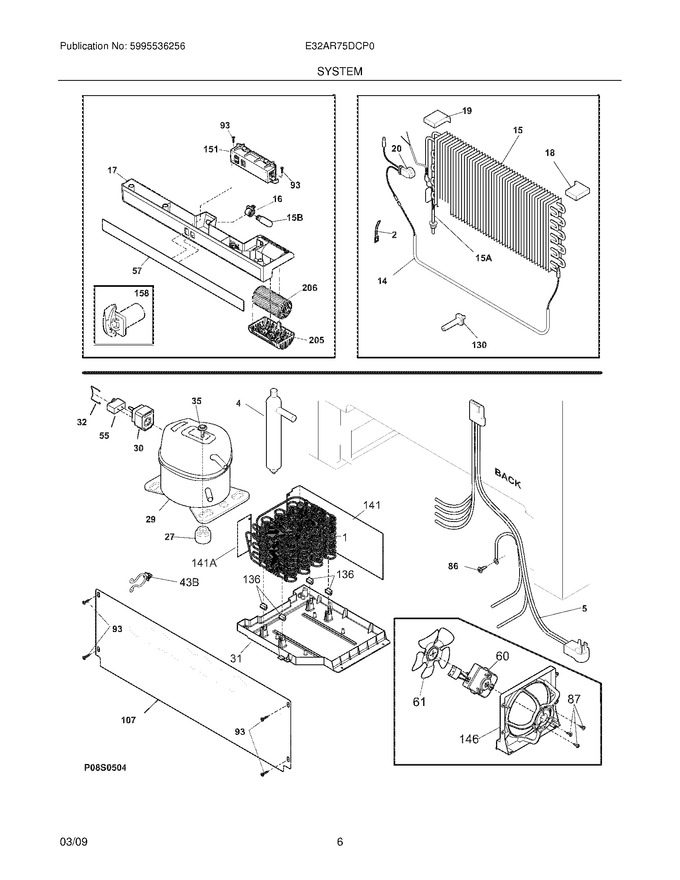

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7297152200		Condenser,dynamic		Appelez-nous	-
2	75308000110		Strap-evap/heater,aluminum ,(2)		Appelez-nous	-
14	7297216100		Heater-defrost		Appelez-nous	-
16	7297139500		Socket,light/lamp		Appelez-nous	-
17	7297110300		Box-control,front		Appelez-nous	-
18	7297078701		Insulator-evap,styrofoam ,rh		Appelez-nous	-
19	7297078801		Insulator-evap,styrofoam ,lh		Appelez-nous	-
20	5304458589		Thermostat,defrost   (Replaces: 7216731001)				$ 85.76
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	7216954205		Controller,compressor		Appelez-nous	-
31	7297165800		Pan-drain		Appelez-nous	-
32	7216649200		Clip,controller		Appelez-nous	-
35	7297177200		Bolt,compressor		Appelez-nous	-
57	7297110802		Overlay-control Box		Appelez-nous	-
60	297279500		Motor-condenser Fan   (Replaces: 7241584301)			Immediately	$ 141.66
61	7241639501		Blade-condenser Fan		Appelez-nous	-
86	7216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca		Appelez-nous	-
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	7297165400		Shield,compressor ,compartment		Appelez-nous	-
130	7297244700		Support,evaporator Mtg		Appelez-nous	-
136	7240405201		Grommet,rubber ,black ,cond Tube/wire		Appelez-nous	-
141	7297164200		Divider,air Flow		Appelez-nous	-
146	7297164000		Shroud-fan Orfice		Appelez-nous	-
158	7297111000		Standoff		Appelez-nous	-
205	7297108500		Cap-air Filter		Appelez-nous	-
206	7241504902		Filter-air		Appelez-nous	-
15A	7297231800		Heat Exchanger		Appelez-nous	-
15B	7297114000		Light Bulb,short ,blue Tint ,40w		Appelez-nous	-
43B	7297048400		Clip		Appelez-nous	-
F141	7297194700		Divider,small ,air Flow		Appelez-nous	-
F146	7216337701		Screw,hwh ,10-24 X 0.500 ,swage		Appelez-nous	-
F15	7216997300		Evaporator		Appelez-nous	-
F151	7297112402		Electronic Control,assy		Appelez-nous	-
F29	7297237300		Compressor,w/o Electricals		Appelez-nous	-
F4	7216938600		Drier-filter		Appelez-nous	-
F5	7297171500		Harness-main		Appelez-nous	-
F55	7218909912		Capacitor,run ,220 Vac ,12 Microfarad		Appelez-nous	-
FNI	7297169901		Cord-power,flat		Appelez-nous	-
NI	7216502500		Sleeve,suction Line		Appelez-nous	-
NI	7240555002		Screw-no.8-32 X 3/8		Appelez-nous	-
NI	297110400		Thermistor   (Replaces: 7297110400)			Immediately	$ 72.68
NI	7297174300		Screw,no.8 ,18x.63 ,self Pierce		Appelez-nous	-
NI	7297108000		Jumper-wire,electronic W/lt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
