SELECT A DIAGRAM

01 - Cover

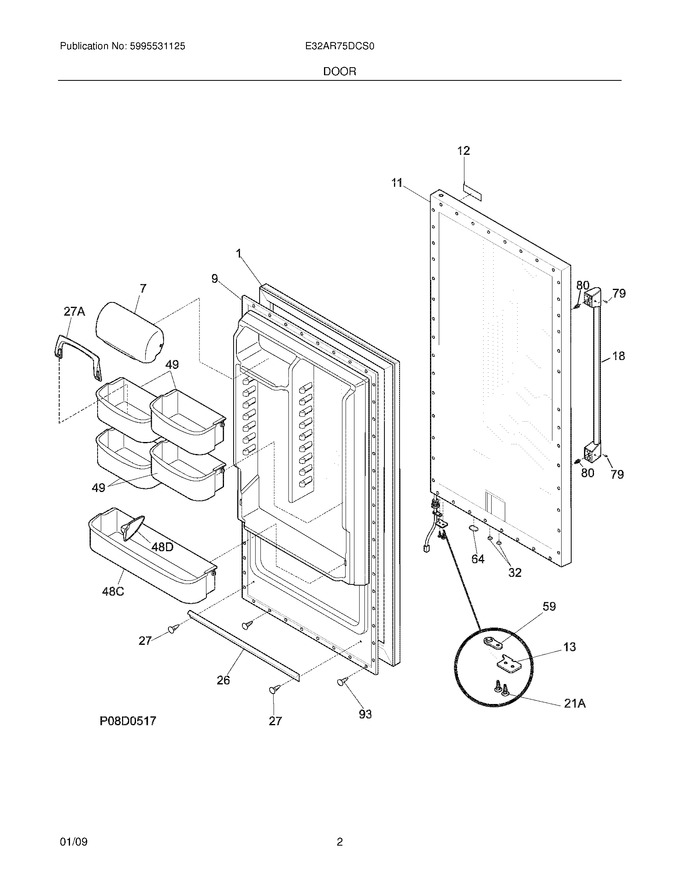

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7216522309		Gasket-door,white		Appelez-nous	-
7	7240338313		Door,dairy ,clear		Appelez-nous	-
9	7216953601		Panel-inner Door,refr		Appelez-nous	-
11	7216526571		Panel-outer Door,stainless		Appelez-nous	-
12	7241603101		Label,nameplate ,elux/icon		Appelez-nous	-
13	75303271076		Door Stop		Appelez-nous	-
18	7241637912		Handle Assembly,stainless ,w/endcaps		Appelez-nous	-
26	7216524200		Gasket,secondary		Appelez-nous	-
27	75303212828		Clip,panel Mtg		Appelez-nous	-
32	75309950074		Valve,breather		Appelez-nous	-
49	216959802		Bin-door,2-liter   (Replaces: 7297107801)			Immediately	$ 83.49
59	7216974500		Bearing,door Closer		Appelez-nous	-
64	7216403700		Plug-button,hole Filler ,door Base		Appelez-nous	-
79	7218755401		Screw-set,10-32 X 0.375		Appelez-nous	-
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 7218755504)			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	5304460608		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 13.39
27A	240396102		Retainer,tall Bottle   (Replaces: 7240396102)				$ 19.13
48C	7297108200		Bin-door,gallon		Appelez-nous	-
48D	7240396302		Snugger,paddle Type		Appelez-nous	-
NI	75304406520		Clip,panel Mtg Kit ,(40)		Appelez-nous	-
NI	7241601001		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
