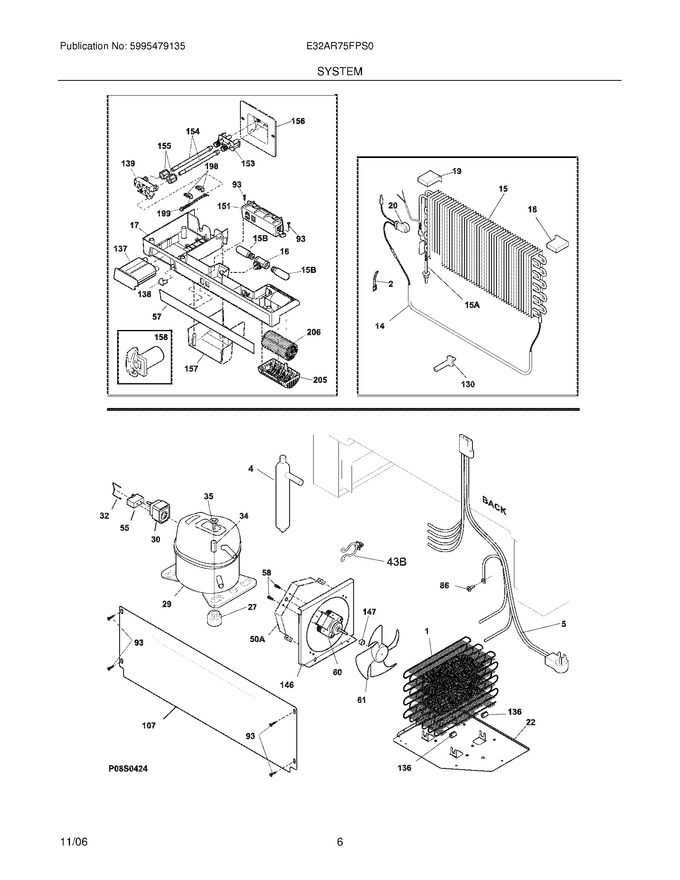

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
17	297110301		Box-control,front				$ 113.93
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
22	216970300		Base,condenser				$ 38.96
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954210		Controller				$ 85.05
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
57	297110901		Overlay-control Box				$ 82.17
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
60	5303918774		Motor,condensor Fan   (Replaces: 240525402)			Immediately	$ 186.30
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
107	297001900		Shield,compressor ,compartment		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
138	240397301		Button-filter Release				$ 91.76
139	240396002		Base-water Filter			Immediately	$ 119.66
146	216970200		Shroud-fan Orfice				$ 104.90
147	240560001		Ring-compression		Appelez-nous	-
153	297110200		Hose-junction Attachment				$ 18.90
154	297112901		Hose,water Inlet				$ 50.47
155	241518001		Nut,1/2-20 ,nylon ,water Hose ,(2)				$ 23.86
156	297110100		Retainer,hose Junction				$ 26.80
157	297110500		Raceway,water Filter		Appelez-nous	-
158	297111000		Standoff,control Box ,(3)		Appelez-nous	-
198	240397401		Retainer				$ 59.54
199	240398401		Spring-filter Release Rod				$ 59.16
199	240397501		Rod				$ 55.57
205	297108500		Cap-air Filter		Appelez-nous	-
206	AFCB		Filter-air   (Replaces: 9917)			Immediately	$ 24.54
206	241504902		Filter-air		Appelez-nous	-
15A	297130100		Heat Exchanger		Appelez-nous	-
15B	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
50A	240524001		Bracket,fan Motor Mount				$ 185.70
F1	5300083897		Condenser				$ 538.37
F137	EWF2CBPA		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 240396405)			Immediately	$ 115.61
F137	WF2CB		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 9916)			Immediately	$ 108.24
F146	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F151	297112402		Electronic Control,assy		Appelez-nous	-
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297068200)			Immediately	$ 677.23
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297122700		Harness-main		Appelez-nous	-
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	131823400		Screw,8-18 X 2.00				$ 1.42
NI	297110400		Thermistor			Immediately	$ 72.68
NI	297112600		Sleeve-control Box,(3)		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297108000		Jumper-wire,electronic W/lt		Appelez-nous	-
