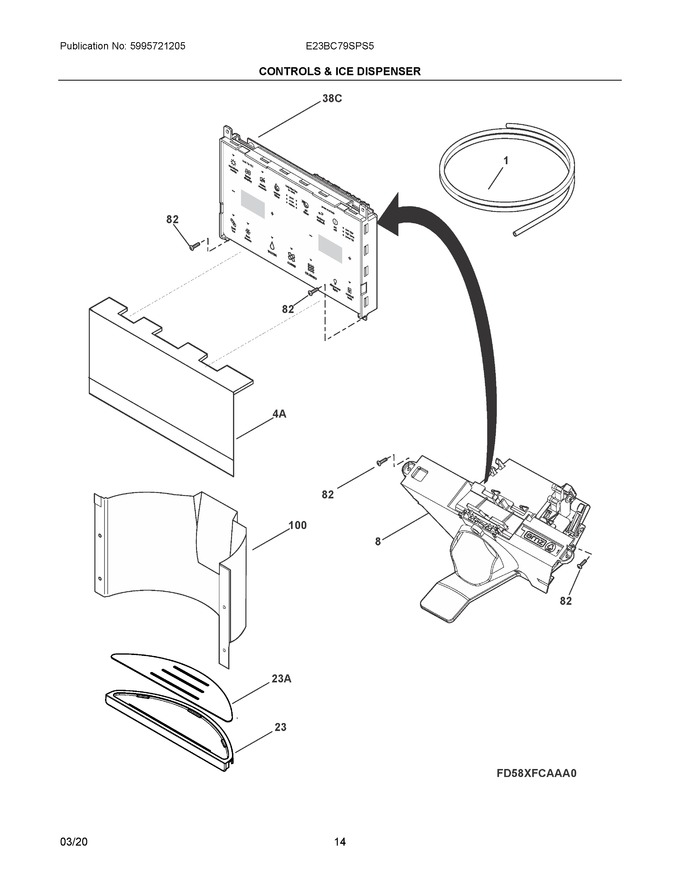

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 8 | 242100024 | Module-dispenser, Silver |
|
$ 274.54 | |||||
| 23 | 241912301 | Drip Tray, Ss Brushed |
|
$ 222.20 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 100 | 241912201 | Liner-sump, Ss Brush |
|
$ 258.70 | |||||
| 23A | 241987001 | Drip Tray, Stainless |
|
$ 59.91 | |||||
| 38C | 5304510412 | Control Assembly, User Interface, W/housing |
|
$ 302.63 | |||||
| 4A | 241912101 | Trim, Dispenser |
|
$ 232.47 | |||||
| NI | 5303918596 | Kit, Ac, Dispenser Htr. |
|
$ 317.38 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 242040801 | Harness-wiring, Dispenser |
|
$ 79.95 | |||||
| NIA | 218976436 | Tube-water, 5/16-42", Yellow, Valve To, Back Connector (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| NIB | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NIC | 241920106 | Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NID | 241964707 | Tube-water, 1/4-36", Light Green, Valve To, Back Connector |
|
Immediately | $ 18.43 | ||||
| NIE | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 24.10 | ||||
| NIF | 241965907 | Tube-water, 5/16 - 69.5", Blue |
|
$ 21.23 | |||||
| NIG | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
