SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram

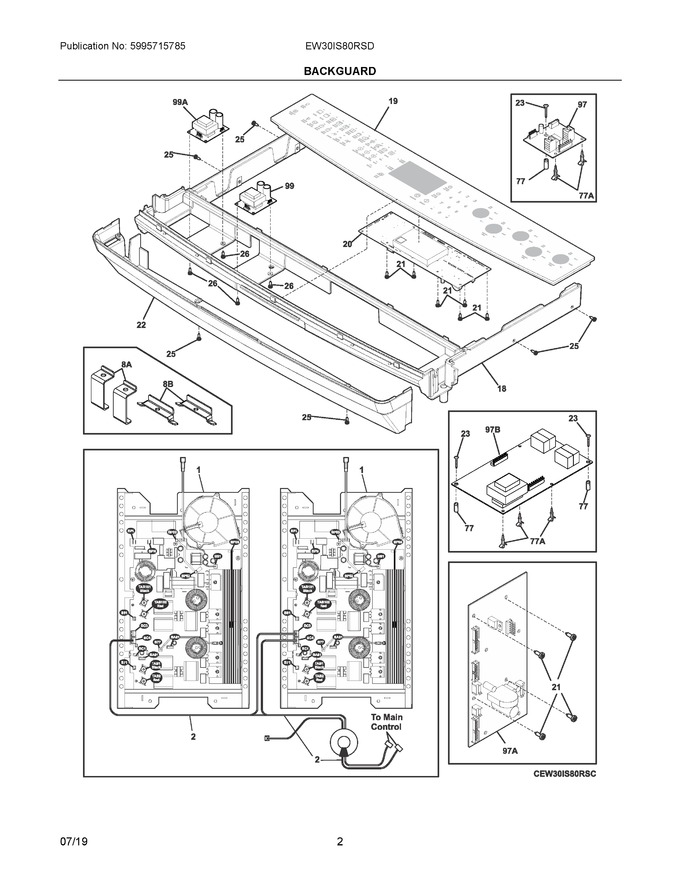

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903160-9010		Housing Assembly, Induction, Generator, W/electronics   (Replaces: 318416100)			Immediately	$ 818.43
2	5304517795		Harness, Wiring, Communication, W/magnetic Core				$ 113.00
18	318900304		Subframe, Control		Appelez-nous	-
19	318387122		Control Assembly, Glass, Black, W/interface				$ 839.39
20	316576687		Controller, Electronic, Es630			Immediately	$ 431.92
21	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
22	318905005		Panel, Service, Stainless				$ 450.32
23	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
25	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
26	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
77	316247900		Spacer, Power Board				$ 44.65
97	316519200		Board, Variable Speed, Triac			Immediately	$ 256.24
99	316535201		Board, Power Supply, 8v				$ 349.42
77A	316114100		Spacer				$ 60.96
8A	318403105		Bracket, Bridge, (2)   (Replaces: 318403100)				$ 49.62
8B	318403202		Bracket, Service Panel, (2)				$ 17.69
97A	316201101		Board, Power, Uib				$ 300.42
97B	316443916		Board, Relay			Immediately	$ 443.48
99A	316435703		Board, Power Supply			Immediately	$ 394.48
NI	5304520761		Harness, Wiring, Generator				$ 67.33
NI	5304517820		Harness, Wiring, Power Supply				$ 65.21
NI	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92
NI	5304517823		Harness, Wiring, Communication				$ 132.53
NI	5303325170		Nut, Keps, 8-32, (2)		Appelez-nous	-
NIA	318534402		Gasket, Maintop, Black				$ 96.54

    View Diagram in Separate Window       Print Part List
