01 - Cover Sheet
02 - Backguard

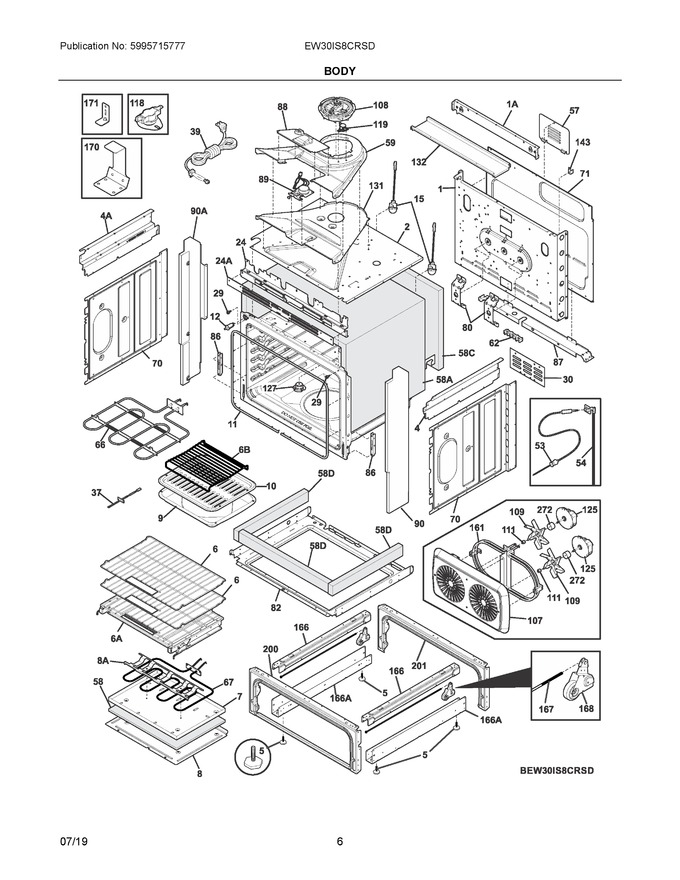

03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017310 | Panel, Main Back |
|
- | |||||
| 2 | 139028107 | Shield, Insulation, Top (Replaces: 139028106) |
|
$ 65.98 | |||||
| 4 | 318905702 | Panel, Side, Rh Upper |
|
$ 96.65 | |||||
| 5 | 316498903 | Leveling Leg |
|
$ 12.13 | |||||
| 6 | 5304518792 | Rack, Oven |
|
$ 94.40 | |||||
| 7 | 318297303 | Box, Bake Element |
|
$ 125.84 | |||||
| 8 | 318359500 | Panel, Service |
|
$ 140.09 | |||||
| 9 | 316081901 | Pan, Broiler, Cobalt Blue |
|
$ 74.32 | |||||
| 10 | 316082001 | Insert, Broiler Pan, Cobalt Blue |
|
$ 53.09 | |||||
| 11 | 807545502 | Seal, Oven Door, Gray |
|
$ 140.34 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 24 | 139074902 | Frame, Vent Trim |
|
- | |||||
| 29 | 316517601 | Bumper, Main Front, Cobalt Blue |
|
- | |||||
| 30 | 5304496125 | Shield, Lower Heat, (2) |
|
- | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 48.13 | ||||
| 39 | 318113111 | Cord, Electric |
|
$ 95.55 | |||||
| 53 | 5304503737 | Probe, Meat, Black (Replaces: 5304516490) |
|
$ 99.33 | |||||
| 54 | 5304517721 | Receptacle Assy, Meat Probe |
|
$ 72.30 | |||||
| 57 | 316283600 | Cover, Access |
|
$ 12.50 | |||||
| 58 | 318294912 | Insullation, Bake Element |
|
$ 97.17 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 85.76 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 5304521498 | Element, Broil, 3400w, 6 Pass |
|
Immediately | $ 87.21 | ||||
| 67 | 5304521880 | Element, Bake, 2500w, 8 Pass |
|
Immediately | $ 114.97 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 72.05 | |||||
| 71 | 139014001 | Shield, Rear Wall, Lower |
|
$ 63.79 | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 139008201 | Shield, Insulation, Lower |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 21.23 | |||||
| 87 | 318260636 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor |
|
$ 24.10 | |||||
| 89 | 139078302 | Motor, Latch Assembly |
|
Immediately | $ 106.70 | ||||
| 90 | 318905812 | Panel, Side, Stainless, Rh |
|
$ 206.49 | |||||
| 107 | 139001502 | Cover, Dual Fan, Cobalt, Convection |
|
$ 80.00 | |||||
| 108 | 807123004 | Motor Assembly, Fan |
|
Immediately | $ 165.66 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 118 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 58.19 | ||||
| 119 | 807144901 | Thermostat, Safety, 110c Deg |
|
$ 58.39 | |||||
| 125 | 139008500 | Motor, Convection Fan |
|
Immediately | $ 216.23 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 73.00 | |||||
| 132 | 318404703 | Duct, Air |
|
$ 81.85 | |||||
| 143 | 318172904 | Bracket, Wire Support |
|
- | |||||
| 161 | 5304522063 | Element, Convection, Dual, 2500w (Replaces: 139006600) |
|
$ 132.71 | |||||
| 166 | 318298410 | Bracket, Base Support, (2) |
|
$ 75.83 | |||||
| 167 | 318147811 | Screw, Lock, Adjusting |
|
$ 31.19 | |||||
| 168 | 318302400 | Wheel & Bracket Assy, Adjustable, (2) |
|
$ 75.13 | |||||
| 170 | 318335305 | Bracket, Anti-tip |
|
$ 17.72 | |||||
| 171 | 318335200 | Bracket, Anti-tilt |
|
$ 31.90 | |||||
| 200 | 318298232 | Frame, Drawer, Black, Front |
|
$ 95.13 | |||||
| 201 | 318298233 | Frame, Drawer, Black, Rear |
|
$ 45.36 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 166A | 5304511884 | Bracket, Base Support, Lower |
|
$ 65.98 | |||||
| 1A | 318905600 | Back, Main, Upper |
|
$ 55.24 | |||||
| 24A | 139075001 | Cover, Vent Trim, Black |
|
$ 60.52 | |||||
| 4A | 318905703 | Panel, Side, Lh Upper |
|
$ 96.65 | |||||
| 58A | 139001700 | Insulation, Oven Wrapper, Top & Sides |
|
- | |||||
| 58C | 139020202 | Insulation, Oven Back |
|
$ 44.46 | |||||
| 58D | 139020301 | Insulation, Sides, (2) |
|
- | |||||
| 6A | 5304518451 | Rack Assembly, Gliding, Cobalt, W/handle |
|
$ 359.15 | |||||
| 6B | 318219500 | Rack, Broiler Pan |
|
- | |||||
| 8A | 318313601 | Bracket, Bake Element |
|
$ 71.45 | |||||
| 90A | 318905813 | Panel, Side, Stainless, Lh |
|
$ 199.31 | |||||
| NI | 5304517822 | Harness, Wiring, Ads Mdl |
|
$ 49.62 | |||||
| NI | 5304517813 | Harness, Wiring, Condensator, W/3 Capacitors |
|
$ 35.44 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5304520762 | Harness, Wiring, Main |
|
- | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 316001009 | Screw, Waf Hd Sq, 10-24 X 1.88, (2), Handle Mtg |
|
$ 15.17 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 318531701 | Spacer |
|
$ 12.05 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 12.89 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 |
