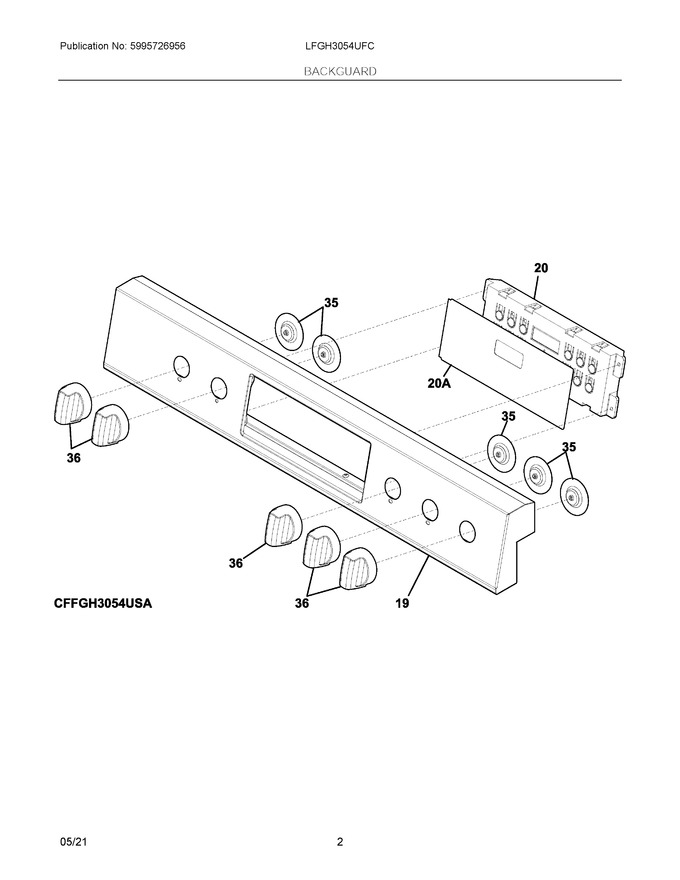

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304514138 | Control Panel, Stainless |
|
$ 328.67 | |||||
| 20 | 5304514107 | Controller, Electronic, Oven, Es330 |
|
Immediately | $ 188.28 | ||||
| 21 | 154079601 | Nut, Hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 35 | 5304508440 | Bushing, Insulating |
|
Immediately | $ 11.38 | ||||
| 36 | 5304514114 | Knob, Top Valve, Stainless |
|
Immediately | $ 97.07 | ||||
| 20A | 316419380 | Overlay, Eoc, Black, Es330 |
|
Immediately | $ 35.65 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 10.02 |
