SELECT A DIAGRAM
01 - Cover

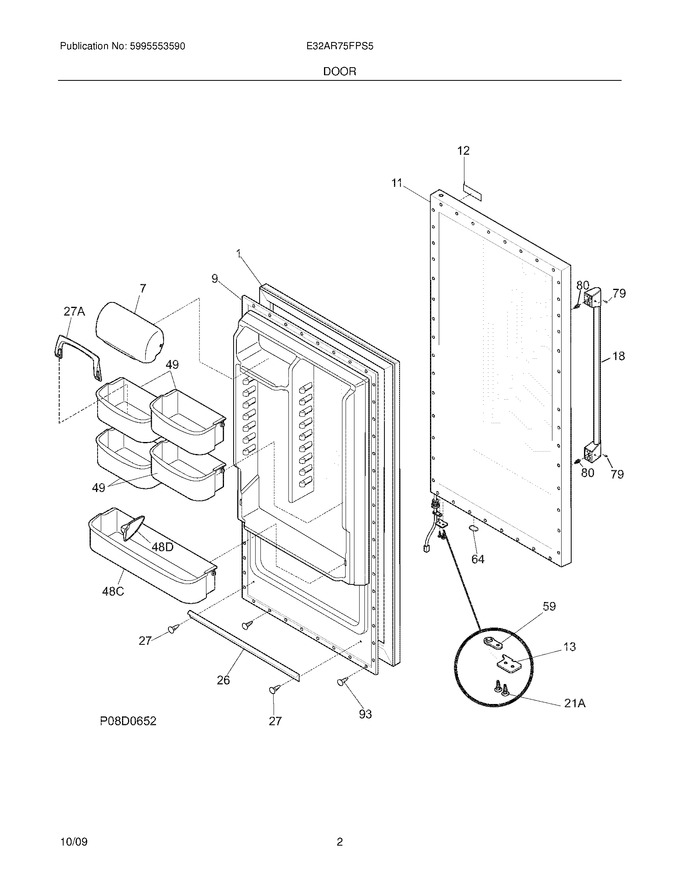

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522309) |
|
Immediately | $ 188.19 | ||||
| 7 | 240338313 | Door,dairy ,clear |
|
Immediately | $ 80.80 | ||||
| 9 | 216953601 | Panel-inner Door,refr |
|
$ 176.51 | |||||
| 11 | 297316548 | Panel-outer Door,stainless ,rh |
|
$ 598.95 | |||||
| 12 | 241603101 | Label,nameplate ,elux/icon |
|
$ 80.96 | |||||
| 13 | 5303271076 | Door Stop |
|
$ 16.30 | |||||
| 18 | 241637912 | Handle Assembly,stainless ,w/endcaps |
|
- | |||||
| 26 | 216524201 | Gasket,secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 11.57 | |||||
| 49 | 216959802 | Bin-door,2-liter (Replaces: 297107801) |
|
Immediately | $ 83.49 | ||||
| 59 | 216974500 | Bearing,door Closer |
|
$ 15.54 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 21A | 5304460608 | Screw,flat Head ,no.1/4-20 ,door Stop/hng |
|
$ 13.39 | |||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 19.13 | |||||
| 48C | 297108200 | Bin-door,gallon |
|
$ 267.92 | |||||
| 48D | 240396302 | Snugger,paddle Type |
|
$ 30.34 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 241601001 | Wrench,allen |
|
- |
