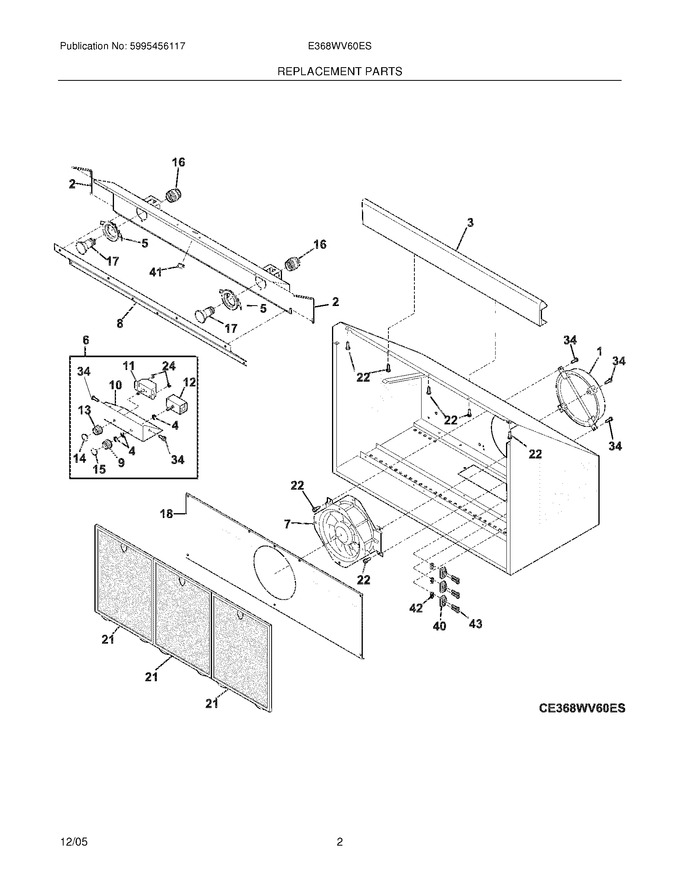

SELECT A DIAGRAM

01 - Cover


03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452403		Damper Assembly,8``		Appelez-nous	-
2	5304453500		Trim,edge		Appelez-nous	-
3	5304452409		Bullnose Assembly,36``				$ 407.34
4	5304452450		Nut,hex ,3/8-24 ,brass		Appelez-nous	-
5	5304452463		Trim,lamp		Appelez-nous	-
8	5304452459		Front,grime Shield ,36``		Appelez-nous	-
9	5304453501		Knob,light				$ 36.91
10	5304453508		Control Box		Appelez-nous	-
13	5304452426		Knob,fan				$ 44.65
14	5304452427		Insert,knob ,fan		Appelez-nous	-
15	5304452428		Insert,knob ,light				$ 20.11
18	5304452456		Shield,grime ,36``		Appelez-nous	-
21	5304452449		Filter,11.88`` X 15.18``				$ 356.46
22	5304453502		Screw,phil Trs ,no.8 X 3/8		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
34	5304452454		Screw,no.8 X .375``				$ 9.88
41	5304446279		Bushing,heyco ,sb-875-11		Appelez-nous	-
42	5304446290		Nut,hex Keps ,no.4-40 ,zinc		Appelez-nous	-
43	5304446289		Screw,phil Pan Hd ,no.4-40 X .625		Appelez-nous	-
F11	5304452424		Control,speed ,8 Amp				$ 385.77
F12	5304452425		Switch,dimmer ,light				$ 316.41
F16	5304452429		Holder,lamp				$ 92.87
F17	5304448674		Lamp,halogen				$ 263.30
F40	5304453510		Block,terminal		Appelez-nous	-
F6	5304453507		Control Box Assembly,complete		Appelez-nous	-
F7	5304452416		Fan Motor Assembly,ebm				$ 556.70
NI	5304453503		Harness,light Liner		Appelez-nous	-
