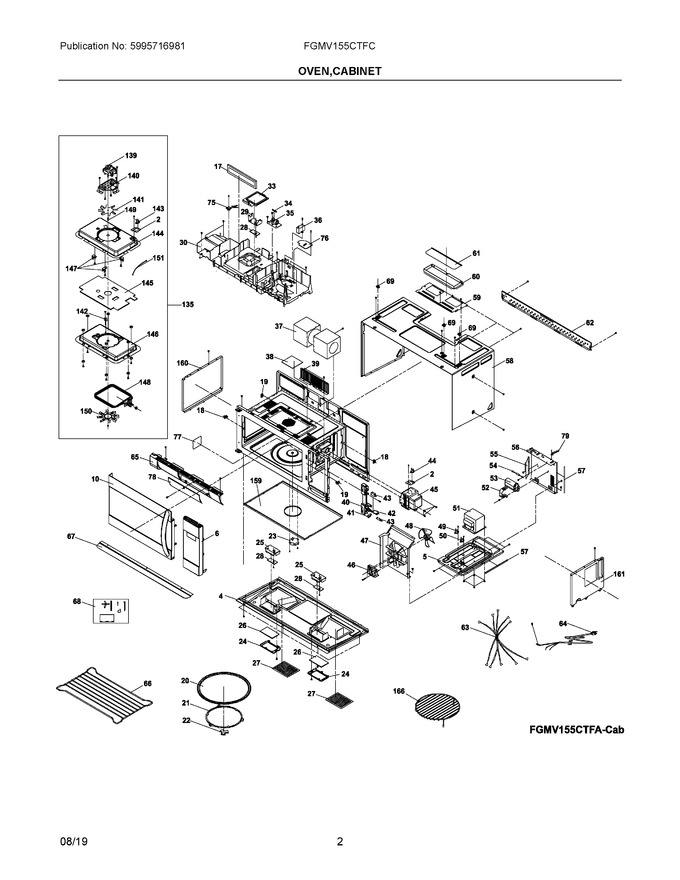

02 - Oven,cabinet
03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304509333 | Bracket, Thermostat |
|
- | |||||
| 4 | 5304509660 | Base, Unit Chassis |
|
$ 199.16 | |||||
| 5 | 5304509418 | Base, Transformer |
|
- | |||||
| 6 | 5304512518 | Control Panel, Assembly, Stainless |
|
$ 604.44 | |||||
| 10 | 5304512520 | Door Assembly, Complete, Stainless |
|
$ 695.92 | |||||
| 17 | FRPAMRAF | Filter, Charcoal, 2" X 10 (Replaces: 5304464577) |
|
Immediately | $ 37.86 | ||||
| 18 | 5304509642 | Support A, Shelf |
|
Immediately | $ 14.55 | ||||
| 19 | 5304509643 | Support B, Shelf |
|
$ 13.83 | |||||
| 20 | 5304509621 | Tray, Turntable |
|
$ 154.61 | |||||
| 21 | 5304509438 | Support, Turntable Ring |
|
$ 52.20 | |||||
| 22 | 5304509622 | Coupler, Turntable/motor |
|
$ 21.02 | |||||
| 23 | 5304509440 | Motor, Turntable |
|
$ 118.13 | |||||
| 24 | 5304509441 | Frame, Lens Holder |
|
- | |||||
| 25 | 5304509442 | Cover, Lamp |
|
$ 59.09 | |||||
| 26 | 5304509443 | Lens, Cooktop Lamp, Glass |
|
- | |||||
| 27 | 5304509444 | Filter, Grease, Washable |
|
Immediately | $ 83.17 | ||||
| 28 | 5304509445 | Lamp Assembly, Led |
|
Immediately | $ 51.55 | ||||
| 29 | 5304512524 | Bracket, Led Lamp |
|
- | |||||
| 30 | 5304512526 | Duct, Air, Main |
|
- | |||||
| 33 | 5304509450 | Cover, Lamp, Oven Cavity |
|
$ 18.62 | |||||
| 34 | 5304509451 | Fuse |
|
Immediately | $ 13.01 | ||||
| 35 | 5304525109 | Filter, Noise, Electronic (Replaces: 5304512523) |
|
$ 86.00 | |||||
| 36 | 5304512525 | Capacitor, Start |
|
- | |||||
| 37 | 5304509624 | Motor, Vent |
|
$ 425.32 | |||||
| 38 | 5304478923 | Lens, Cavity Lamp, Glass |
|
- | |||||
| 39 | 5304509456 | Cover, Control Shield, Right |
|
$ 19.52 | |||||
| 40 | 5304509457 | Latch Hook |
|
Immediately | $ 43.79 | ||||
| 41 | 5304509458 | Lever, Switch |
|
Immediately | $ 10.17 | ||||
| 42 | 5304512529 | Switch, Monitor |
|
Immediately | $ 37.96 | ||||
| 43 | 5304509460 | Switch, Interlock |
|
Immediately | $ 45.27 | ||||
| 44 | 5304509469 | Thermostat, 160/95 *v |
|
Immediately | $ 21.78 | ||||
| 45 | 5304509470 | Magnetron, High Voltage |
|
Immediately | $ 436.17 | ||||
| 46 | 5304509471 | Motor, Cooling Fan |
|
Immediately | $ 150.42 | ||||
| 47 | 5304509472 | Duct, Cooling Fan |
|
$ 79.52 | |||||
| 48 | 5304509473 | Fan Blade, Cooling Fan (Replaces: 5304464257) |
|
$ 15.47 | |||||
| 49 | 5304509474 | Thermostat, Cutout, Transformer |
|
Immediately | $ 20.97 | ||||
| 50 | 5304509475 | Thermostat, Cutout, Vent Motor |
|
Immediately | $ 19.52 | ||||
| 51 | 5304509476 | Transformer, High Voltage |
|
$ 440.36 | |||||
| 52 | 5304509477 | Retainer, Capacitor Strap |
|
- | |||||
| 53 | 5304509478 | Capacitor, High Voltage |
|
Immediately | $ 153.84 | ||||
| 54 | 5304509479 | Diode, High Voltage |
|
$ 28.30 | |||||
| 55 | 5304509480 | Vent, Air, Magnetron |
|
$ 57.65 | |||||
| 56 | 5304509481 | Plate, Air Guide |
|
- | |||||
| 57 | 5304509482 | Cushion, Foam Pad, Transformer |
|
- | |||||
| 58 | 5304509483 | Cabinet, Outer Casing, Black |
|
$ 374.22 | |||||
| 59 | 5304509484 | Cover, Vent Motor |
|
$ 140.76 | |||||
| 60 | 5304509485 | Adapter, Exhaust, Damper Frame |
|
Immediately | $ 25.32 | ||||
| 61 | 5304509486 | Damper, Door, Exhaust Adapter |
|
Immediately | $ 27.73 | ||||
| 62 | 5304509487 | Plate, Wall Mounting, Rear |
|
Immediately | $ 59.63 | ||||
| 63 | 5304518854 | Harness, Wiring, Main |
|
$ 140.25 | |||||
| 64 | 5304512501 | Power Cord, Electric |
|
$ 106.27 | |||||
| 65 | 5304509646 | Vent, Stainless, Front |
|
Immediately | $ 135.33 | ||||
| 66 | 5304509647 | Shelf, Wire |
|
$ 151.09 | |||||
| 67 | 5304509648 | Shield, Heat, Base Plate |
|
$ 94.71 | |||||
| 68 | 5304503192 | Mounting Kit, With Templates (Replaces: 5304492620) |
|
$ 114.26 | |||||
| 69 | 5304509436 | Mounting Nut Kit |
|
Immediately | $ 14.71 | ||||
| 75 | 5304509652 | Sensor, Humidity |
|
$ 305.46 | |||||
| 76 | 5304480205 | Baffle, Air Duct |
|
- | |||||
| 77 | 5304509435 | Cover, Waveguide |
|
$ 13.74 | |||||
| 78 | 5304512503 | Door, Vent Grille |
|
$ 68.00 | |||||
| 79 | 5304478922 | Spacer, Duct |
|
- | |||||
| 135 | 5304512527 | Fan Assembly, Convection |
|
$ 303.63 | |||||
| 139 | 5304478915 | Motor, Convection Fan |
|
$ 262.24 | |||||
| 140 | 5304478916 | Bracket, Motor Mount |
|
- | |||||
| 141 | 5304514297 | Fan Blade, Cooling Fan (Replaces: 5304478917) |
|
$ 11.13 | |||||
| 142 | 5304478918 | Sensor, Temperature, Thermistor |
|
$ 104.18 | |||||
| 143 | 5304478919 | Thermostat, 160/95 *h |
|
$ 26.23 | |||||
| 144 | 5304512528 | Insulation, Heat |
|
- | |||||
| 145 | 5304480193 | Insulation, Fiberglass |
|
- | |||||
| 146 | 5304480194 | Cover, Heater |
|
- | |||||
| 147 | 5304480195 | Support, Heater |
|
- | |||||
| 148 | 5304480196 | Element, Heater, Convection |
|
$ 148.84 | |||||
| 149 | 5304480197 | Bushing, Motor Shaft |
|
- | |||||
| 150 | 5304478928 | Fan Blade, Convection |
|
- | |||||
| 151 | 5304480198 | Wire, Heater, Thermostat |
|
$ 19.85 | |||||
| 159 | 5304480199 | Panel, Heat Insulator, Bottom |
|
- | |||||
| 160 | 5304480201 | Insulator, Heat, Left |
|
- | |||||
| 161 | 5304480203 | Insulator, Heat, Right |
|
- | |||||
| 166 | 5304478926 | Rack, Round, Wire, 3-leg |
|
$ 127.58 | |||||
| NI | 5304472496 | Screw Kit, Black |
|
$ 71.56 | |||||
| NIA | 5304480204 | Insulation, Fiberglass, Right |
|
- | |||||
| NIA | 5304480202 | Insulation, Fiberglass, Left |
|
- | |||||
| NIA | 5304480200 | Insulation, Fiberglass, Bottom |
|
- |
