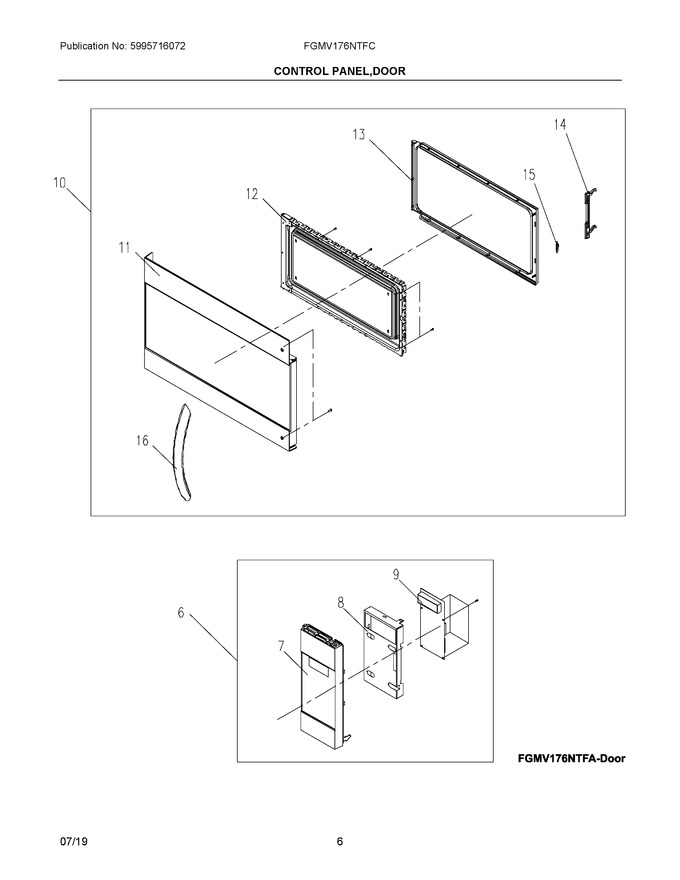

03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5304509661 | Control Assembly, Black |
|
$ 757.15 | |||||
| 7 | 5304509662 | Control Panel, W/membrane, Black |
|
$ 464.93 | |||||
| 8 | 5304509634 | Panel, Control Mount, Bracket |
|
$ 50.32 | |||||
| 9 | 5304509637 | Pc Board, Main, Control/power |
|
$ 379.54 | |||||
| 10 | 5304509638 | Door Assembly, Stainless |
|
$ 617.14 | |||||
| 11 | 5304509639 | Panel, Outer Door, Stainless |
|
$ 397.61 | |||||
| 12 | 5304494118 | Panel, Inner Door, Black |
|
$ 223.39 | |||||
| 13 | 5304509640 | Frame, Choke Cover, Inner Door |
|
$ 50.61 | |||||
| 14 | 5304525298 | Latch, Door (Replaces: 5304509432) |
|
Immediately | $ 10.85 | ||||
| 15 | 5304521953 | Spring, Door Latch (Replaces: 5304509433) |
|
$ 7.23 | |||||
| 16 | 5304509641 | Handle, Door, Stainless |
|
$ 178.25 |
