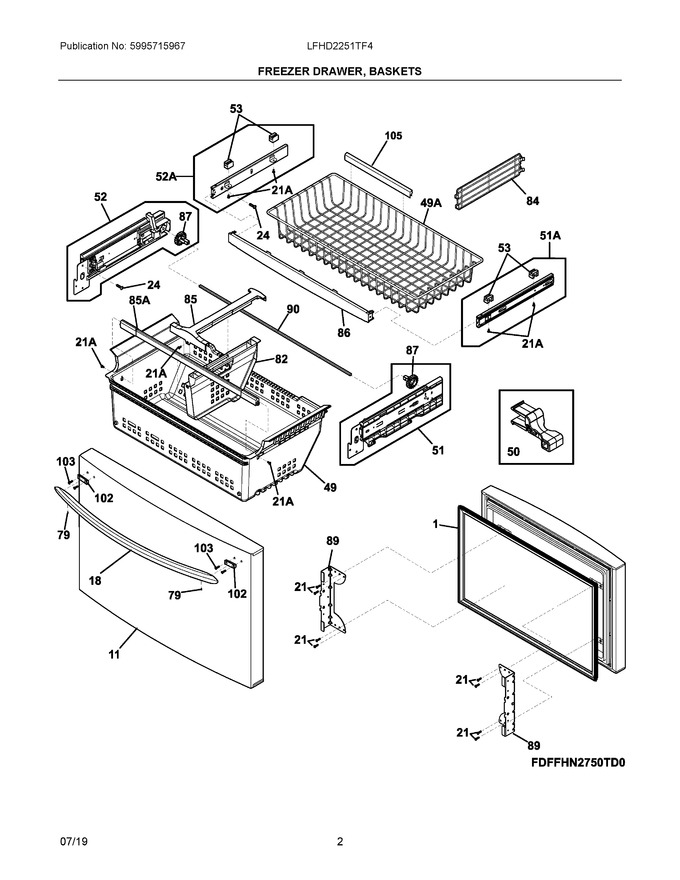

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket, Freezer Drawer, Grey (Replaces: 5304501270) |
|
Immediately | $ 86.28 | ||||
| 11 | 241987962 | Drawer, Stainless 11 |
|
Immediately | $ 466.82 | ||||
| 18 | 5304510339 | Handle-drawer, Stainless |
|
$ 191.11 | |||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 49 | 5304526200 | Basket, Freezer Drawer, Lower (Replaces: 5304508740) |
|
Immediately | $ 147.57 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 15.60 | ||||
| 51 | 5304507977 | Slide Assembly, Basket Lower, Rh, W/pinion |
|
Immediately | $ 252.53 | ||||
| 52 | 5304507976 | Slide Assembly, Basket Lower, Lh, W/pinion |
|
Immediately | $ 236.77 | ||||
| 53 | 5304508271 | Retainer, Basket, Upper |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 82 | 5304507996 | Divider, Lower Basket |
|
$ 104.66 | |||||
| 84 | 241780905 | Divider, Basket |
|
$ 91.43 | |||||
| 85 | 242139401 | Divider, Basket, Lower |
|
$ 87.21 | |||||
| 86 | 5304507340 | Trim, Drawer, Stabilizer |
|
Immediately | $ 45.55 | ||||
| 87 | 5304507999 | Pinion |
|
$ 10.62 | |||||
| 89 | 5304509676 | Bracket, Freezer Drawer, (2) |
|
$ 77.36 | |||||
| 90 | 241770705 | Bar, Timing (Replaces: 241770702) |
|
$ 50.66 | |||||
| 102 | 5304504279 | Block-handle Mtg |
|
Immediately | $ 18.50 | ||||
| 103 | 242077302 | Screw, #10 Ab Flat Hd |
|
Immediately | $ 7.79 | ||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 49A | 241780811 | Basket-frzr, Upper |
|
$ 212.93 | |||||
| 51A | 5304508094 | Slide Assembly, Freezer Basket, Upper Rh |
|
$ 137.26 | |||||
| 52A | 5304508095 | Slide Assembly, Freezer Basket, Upper Lh |
|
$ 139.54 | |||||
| 85A | 242139301 | Support-beam, Divider, Lower Basket |
|
$ 73.71 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| NIA | 242139201 | Spring-compression, Divider, Lower Basket |
|
$ 19.72 | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 | |||||
| NIA | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| NIAA | 242039701 | Screw, Basket Slides |
|
$ 13.46 |
