SELECT A DIAGRAM

01 - Cover Sheet


02 - Body


03 - Drawer


04 - Wiring Diagram

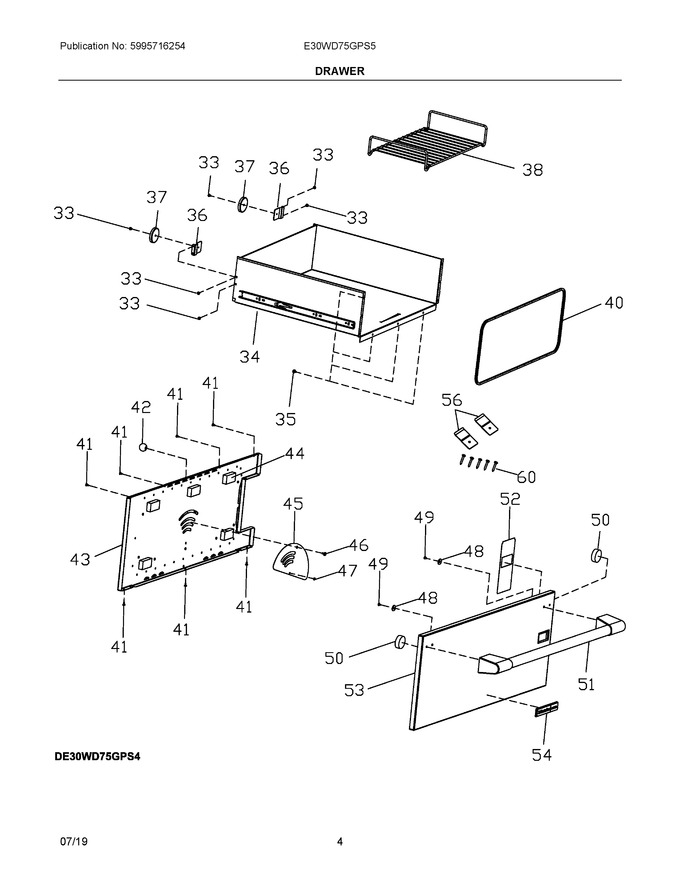

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	305338504		Screw, M4 X 5 Mm, (6)		Appelez-nous	-
34	808248901		Drawer Assembly, W/glides				$ 455.81
35	5304415832		Screw, 8-18 X 13/32", (7)		Appelez-nous	-
36	808499901		Bracket, Magnet Mtg., (2)		Appelez-nous	-
37	318373201		Magnet, Drawer, (2)				$ 5.99
38	807328301		Rack, Warmer Drawer   (Replaces: 318345601)				$ 87.21
40	318254408		Gasket, Warmer Drawer				$ 49.40
41	08016432		Screw, Truss Head, 8-18 X 3/8", (7)		Appelez-nous	-
42	318251100		Handle, Control, Humidity		Appelez-nous	-
43	807356701		Liner, Drawer Panel, Inner		Appelez-nous	-
44	807273501		Spacer, Door, Foam, (5)		Appelez-nous	-
45	807393601		Panel, Humidity Cntl		Appelez-nous	-
46	5304443138		Screw, 10-24 X 3/8		Appelez-nous	-
47	305616000		Rivet, Humidity Panel		Appelez-nous	-
48	305338306		Washer, Flat, (2)		Appelez-nous	-
49	305615701		Screw, Handle Mtg., 10-32 X 1/2", (2)		Appelez-nous	-
50	318339700		Bumper, Base, (2)		Appelez-nous	-
51	318392423		Handle, Door				$ 316.10
52	318394100		Display, Window		Appelez-nous	-
53	807446301		Panel, Drawer, Stainless, Outer				$ 261.08
54	241603101		Label, Nameplate, Elux/icon				$ 80.96
56	318247403		Bracket, Wall, (2)		Appelez-nous	-
60	305376110		Screw, St4.8 X 31.75, (4)		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51

    View Diagram in Separate Window       Print Part List
