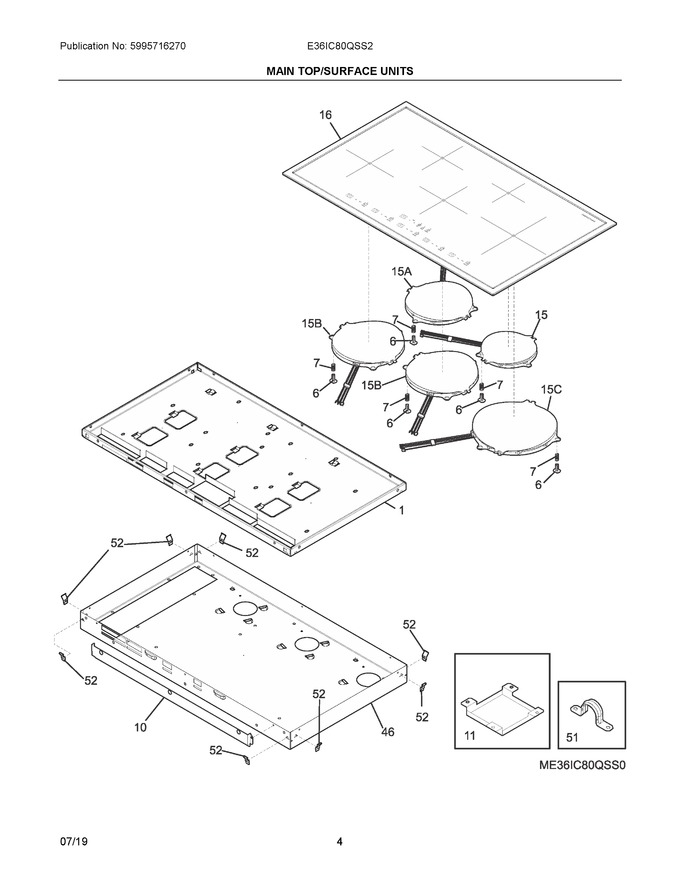

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304499629		Box, Inner		Appelez-nous	-
6	318405000		Pin, Guide, Elements, (12)				$ 19.38
7	318534300		Spring, Guide Pin, (12)				$ 7.09
10	318534001		Deflector, Outer				$ 121.38
11	318381731		Deflector, Air		Appelez-nous	-
15	318329241		Element, Induction Coil, 140mm				$ 229.03
16	305638949		Main Top, Assembly, Glass/steel, Black/stainless, W/uib Boards				$ 1,118.81
46	5304499630		Box, Outer		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 12.76
52	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
15A	318329242		Element, Induction Coil, 180mm				$ 268.46
15B	318329243		Element, Induction Coil, 210mm				$ 312.44
15C	318329246		Element, Induction Coil, 280mm				$ 404.46
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NIA	5304424462		Foam Tape, 1/2" X 14			Immediately	$ 69.77
NIA	73218-3010		Foam Tape, 3/8   (Replaces: 5303323177)				$ 45.36
