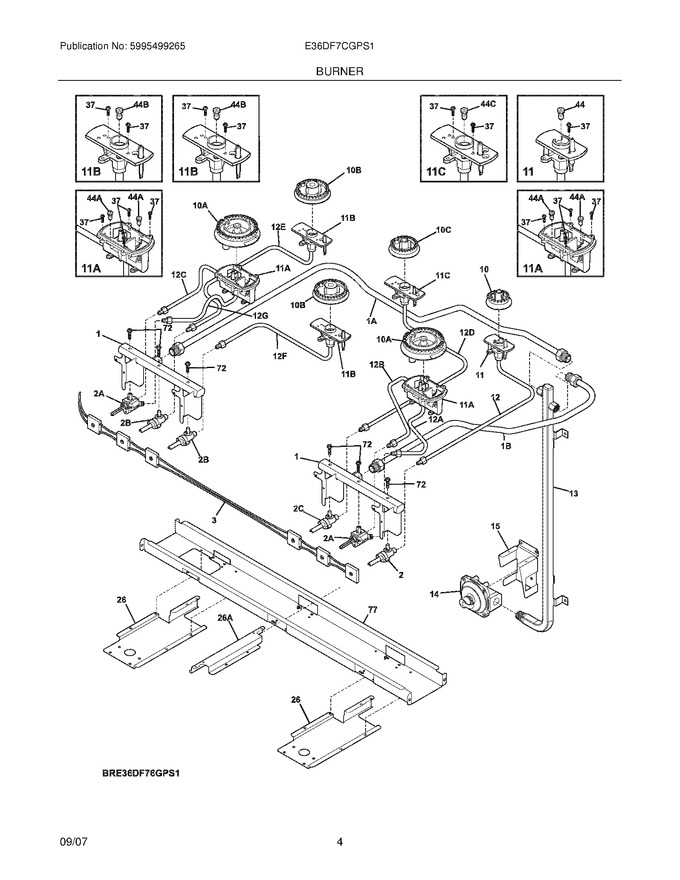

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318376110		Bracket,regulator		Appelez-nous	-
26	318363800		Bracket,channel Mtg ,(2)		Appelez-nous	-
37	316540900		Screw,ignitor Assy Mt ,6-32 X .62   (Replaces: 316518100)			Immediately	$ 15.17
44	316523504		Orifice,top Burner ,5k				$ 19.69
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318355511		Bracket,channel Mtg.		Appelez-nous	-
12A	318366721		Tube,18k Burner ,rh Front		Appelez-nous	-
1A	318305453		Tube,manifold ,interconnect				$ 111.48
1B	318305454		Tube,manifold ,interconnect				$ 102.77
26A	318363900		Bracket,channel Mtg.		Appelez-nous	-
44A	316523508		Orifice,top Burner ,18k				$ 13.23
44B	316523506		Orifice,top Burner ,14k		Appelez-nous	-
44C	316523500		Orifice,top Burner ,9.5k				$ 13.90
F1	318357805		Manifold,(2)				$ 125.84
F10	316510800		Burner,sealed ,5k				$ 106.41
F10A	316525400		Burner,sealed ,dual ,18k		Appelez-nous	-
F10B	316511200		Burner,sealed ,14k				$ 167.98
F10C	316511000		Burner,sealed ,9.5k		Appelez-nous	-
F11	316524800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 125.84
F11A	316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F11B	316525000		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 101.85
F11C	316524900		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 78.77
F12	318366711		Tube,burner ,rh Rear ,5k		Appelez-nous	-
F12B	318366720		Tube,18k Burner ,rh Front		Appelez-nous	-
F12C	318366722		Tube,18k Burner ,lh Front		Appelez-nous	-
F12D	318366726		Tube,9.5k Burner ,center		Appelez-nous	-
F12E	318366724		Tube,14k Burner ,lh Rear		Appelez-nous	-
F12F	318366725		Tube,14k Burner ,center Front		Appelez-nous	-
F12G	318366723		Tube,18k Burner ,lh Front		Appelez-nous	-
F13	318357811		Manifold,regulator		Appelez-nous	-
F14	318122705		Regulator,pressure				$ 120.58
F2	316520700		Valve,burner ,5k				$ 126.87
F2A	316574900		Valve,top Burner ,18k ,dual Port   (Replaces: 316412510)				$ 242.16
F2B	316520703		Valve,burner ,14k				$ 146.01
F2C	316520701		Valve,burner ,9.5k				$ 131.84
F3	318232638		Wiring Harness,w/igntr Switch			Immediately	$ 150.06
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318186914		Lp Conversion Kit				$ 103.22
NI	318243102		Harness,burner Wiring		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
