SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer

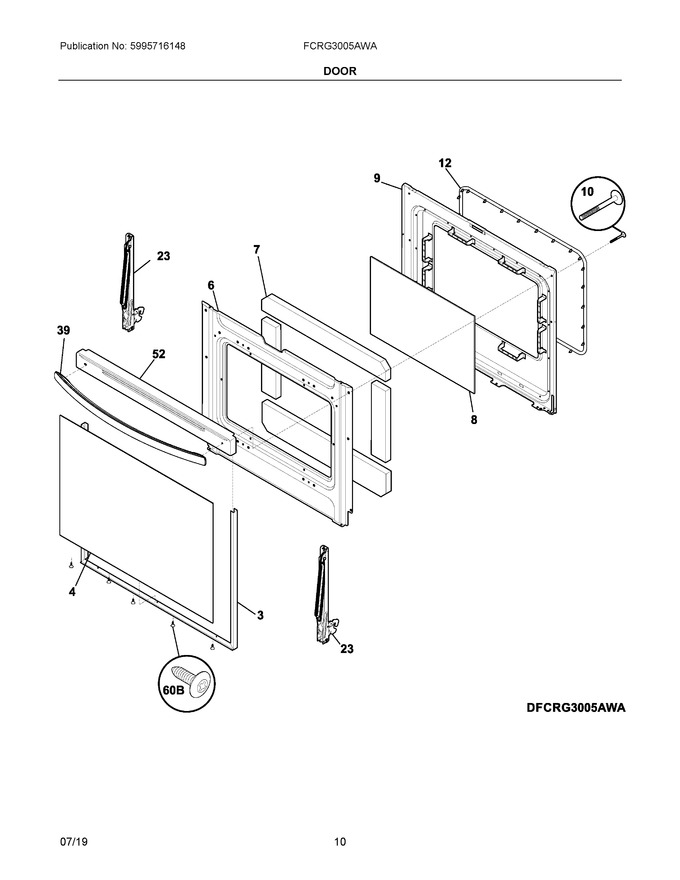

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935379		Trim Kit-door, 3 Sided, White, W/tape		Appelez-nous	-
4	316558907		Glass, Oven Door, White, Outer   (Replaces: 316558909)				$ 153.83
6	316435802		Shield-wool		Appelez-nous	-
7	316403903		Insulation, Oven Door		Appelez-nous	-
9	316423816		Liner, Oven Door		Appelez-nous	-
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
23	316575921		Hinge, Oven Door, Orange			Immediately	$ 42.47
39	5304522047		Handle, Door, White   (Replaces: 5304507385)			Immediately	$ 122.63
52	316575500		Cap, Door Trim, White			Immediately	$ 122.09
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
