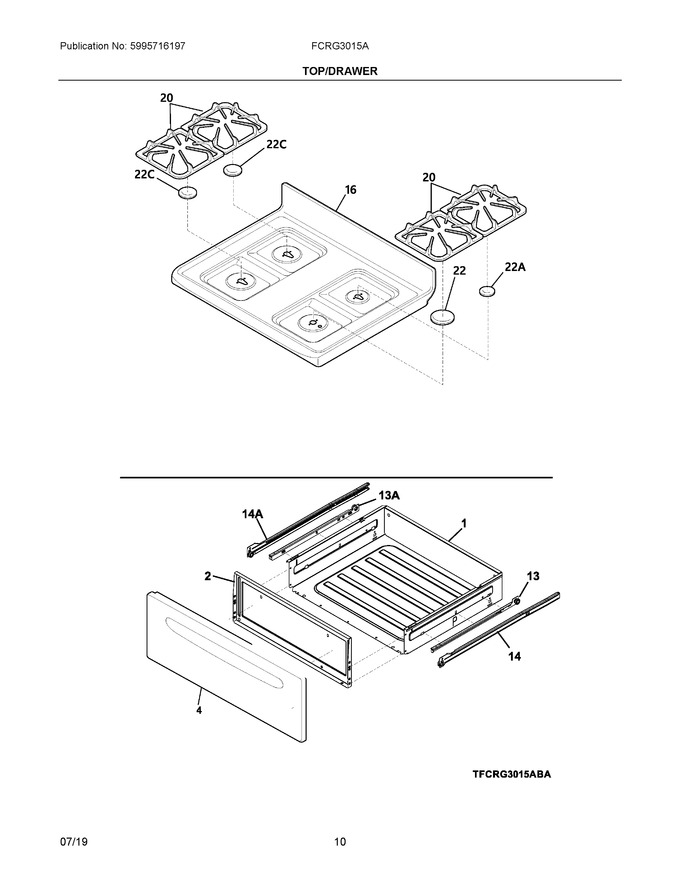

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer   (Replaces: 5304511880)			Immediately	$ 26.54
4	5304513125		Panel, Drawer, Black				$ 90.86
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
16	316610054		Main Top, Black		Appelez-nous	-
20	316463200		Grate, Gloss Black, (4)				$ 129.00
22	316262000		Cap, 14k Burner, Black				$ 54.13
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
22A	316261700		Cap, 5k Burner, Black				$ 43.99
22C	316261800		Cap, 9.5k Burner, Black, (3)		Appelez-nous	-
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
