01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

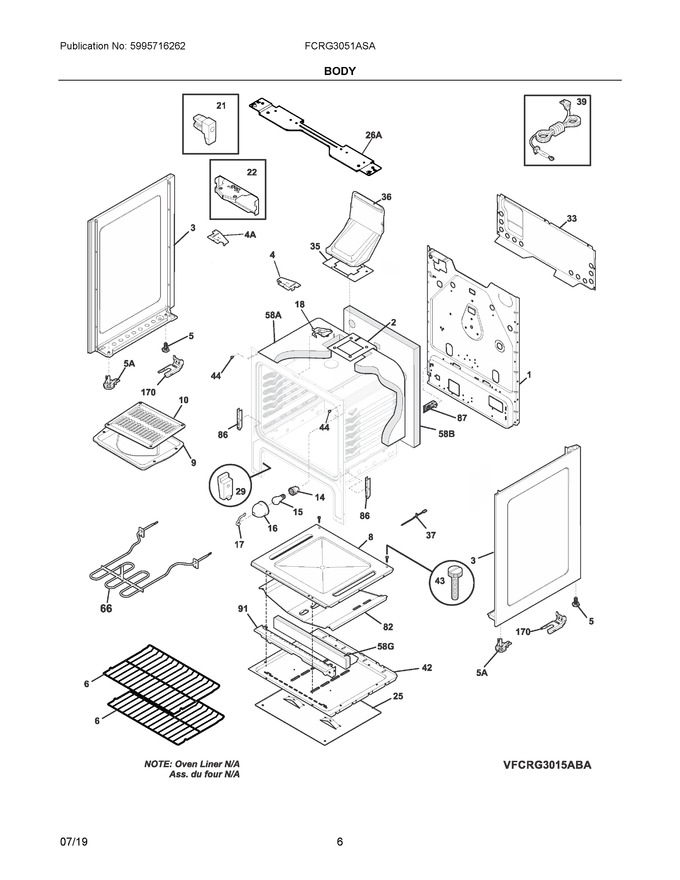

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401608		Back, Main   (Replaces: 316401607)				$ 138.34
2	316437100		Brace, Oven Top				$ 32.50
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400136)			Immediately	$ 137.25
4	316605400		Bracket-maintop, Rh		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven			Immediately	$ 105.45
8	316400603		Panel, Oven Bottom			Immediately	$ 190.12
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.87
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 57.78
18	316405802		Bracket, Hole Opening, No Latch		Appelez-nous	-
21	316408000		Clip, Bodyside				$ 18.55
22	316286300		Bracket-bodyside, (2)				$ 18.05
25	316406200		Shield, Heat, Lower				$ 89.65
33	316405900		Shield, Rear Wall				$ 102.78
35	316542102		Gasket-flue				$ 12.37
36	316208903		Flue		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	5304534000		Cord, Electric Power, Black   (Replaces: 5304509199)			Immediately	$ 34.00
42	316400700		Shield, Wool, Lower				$ 149.15
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 10.12
44	316517600		Bumper, Front, Main				$ 12.28
66	5304521340		Element, Broil				$ 89.65
82	316400801		Shield, Bake Burner				$ 167.70
86	316441300		Receptacle, Hinge				$ 22.39
87	316401202		Bracket, Harness		Appelez-nous	-
91	807219501		Shield, Burner, Front		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 19.27
26A	316498200		Bracket-support, Chassis, Aluminum				$ 53.33
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400137)			Immediately	$ 136.48
4A	316605401		Bracket-maintop, Lh		Appelez-nous	-
58A	316403701		Insulation, Oven Wrapper		Appelez-nous	-
58B	316403603		Insulation, Oven Back				$ 21.64
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.45
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.73
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.28
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.45
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 13.13
NI	316089500		Screw, 10-16 X .486				$ 13.73
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.45
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.09
NI	5304520710		Harness, Wiring, Main				$ 157.65
NI	316210800		Plug, Hole, Light Switch				$ 10.84
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.09
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.73
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303288566		Screw, Tr Hd Sqd Ab, 8-18 X 0.25, (8)				$ 2.17
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 19.27
NIA	316432800		Clip, Wire		Appelez-nous	-
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 13.13
NIC	316541700		Template, Anti-tip		Appelez-nous	-
