SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Maintop

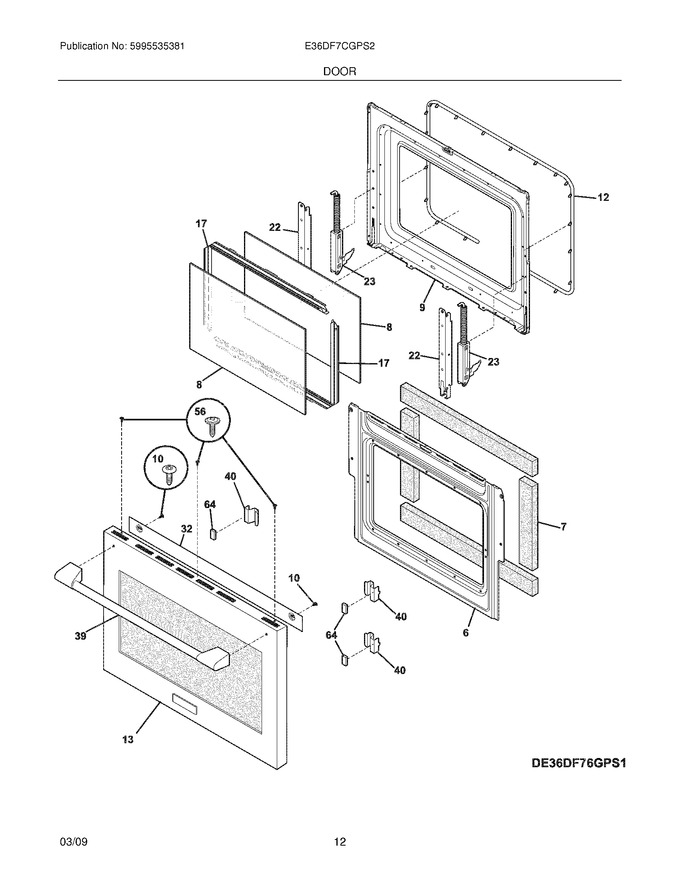

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260550		Baffle,door		Appelez-nous	-
7	318372003		Insulation,door		Appelez-nous	-
8	318212250		Glass,oven Door ,heat Barrier ,(2)				$ 261.63
9	318364602		Liner,oven Door				$ 393.60
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
12	318053151		Gasket,oven Door Seal				$ 110.09
13	318344013		Door Assembly,stainless/glass ,w/badge				$ 724.14
17	318376400		Spacer,door Glass ,(2)		Appelez-nous	-
22	318353803		Retainer,hinge				$ 52.45
23	318244304		Hinge Assy,(2)				$ 285.90
32	318390500		Deflector,handle		Appelez-nous	-
39	318392420		Handle,door		Appelez-nous	-
40	318364700		Bracket,glass ,(4)		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
NI	316221002		Label,anti-tip		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
