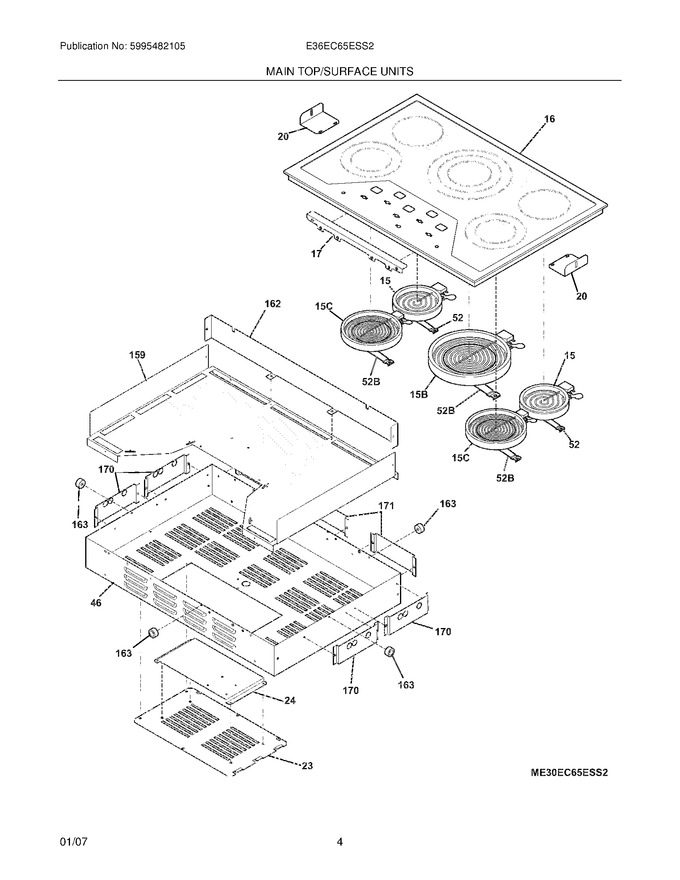

05 - Main Top/surface Units


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318310210		Maintop Assembly,glass/frame ,black/stainless				$ 1,377.55
17	318341011		Bracket,trim Holder ,black		Appelez-nous	-
20	318121905		Bracket,retainer ,(2)				$ 39.90
23	318310107		Panel,service		Appelez-nous	-
24	318310700		Bracket,mounting				$ 76.34
46	318077243		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125161		Deflector		Appelez-nous	-
162	318161407		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
170	318124910		Screen,thermal ,(4)		Appelez-nous	-
171	318124912		Screen,thermal		Appelez-nous	-
52B	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F15B	318297804		Element,surface ,triple ,800/900/1000				$ 345.24
F15C	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	318078541		Box & Wires Assy		Appelez-nous	-
NI	318199483		Harness,wiring ,main		Appelez-nous	-
NI	318083037		Harness,wiring ,to Transformer		Appelez-nous	-
NI	318052533		Ground Wire,w/terminal		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5304424462		Foam Tape,1/2`` X 14``			Immediately	$ 69.77
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
