SELECT A DIAGRAM

01 - Cover


03 - Control Panel

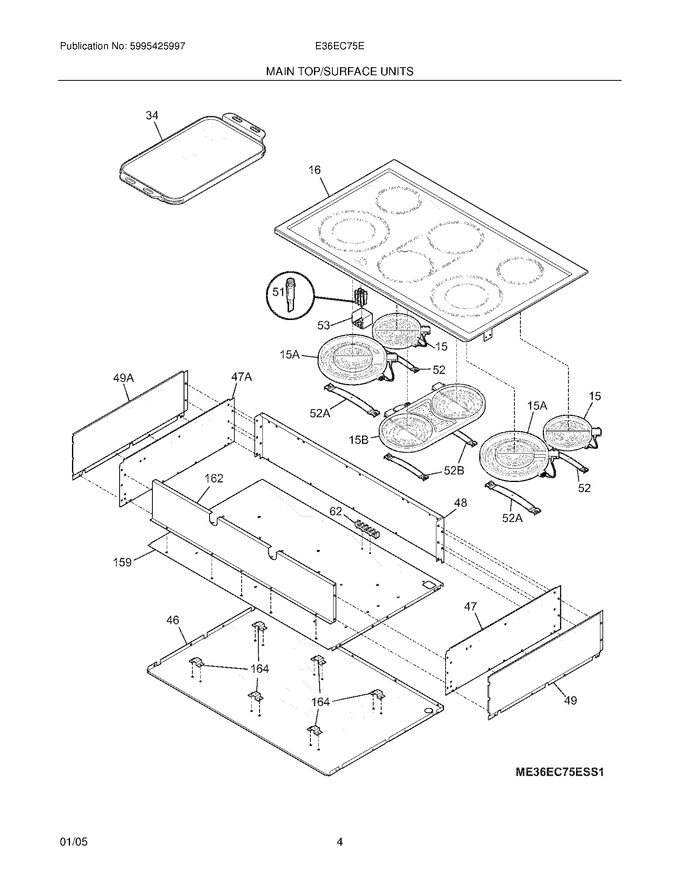

05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318185200		Main Top Assy,glass ,black		Appelez-nous	-
34	5304495353		Griddle   (Replaces: 318246100)			Immediately	$ 166.84
46	318242801		Panel,base		Appelez-nous	-
47	318241702		Panel,side ,rh		Appelez-nous	-
48	318241801		Panel,rear		Appelez-nous	-
49	318241900		Panel,interior Side ,rh		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
53	318125960		Bracket,pilot Light		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
159	318242901		Panel,bottom		Appelez-nous	-
162	318245500		Shield,heat		Appelez-nous	-
164	318252901		Support,box ,(6)		Appelez-nous	-
47A	318241703		Panel,side ,lh		Appelez-nous	-
49A	318241901		Panel,interior Side ,lh		Appelez-nous	-
52A	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
52B	318122008		Spring-element Mtg				$ 90.80
F15	318198817		Element,surface ,small/6`` ,1200 W			Immediately	$ 192.78
F15A	316555800		Element,dual ,6``/9`` ,surface ,1200w/1300w,radiant   (Replaces: 316418400)			Immediately	$ 138.90
F15B	318258201		Element,bridge			Immediately	$ 480.54
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	318235710		Insulation,pilot Light ,aluminum Foil		Appelez-nous	-
NI	318078541		Box & Wires Assy		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
