SELECT A DIAGRAM

01 - Cover


03 - Controls

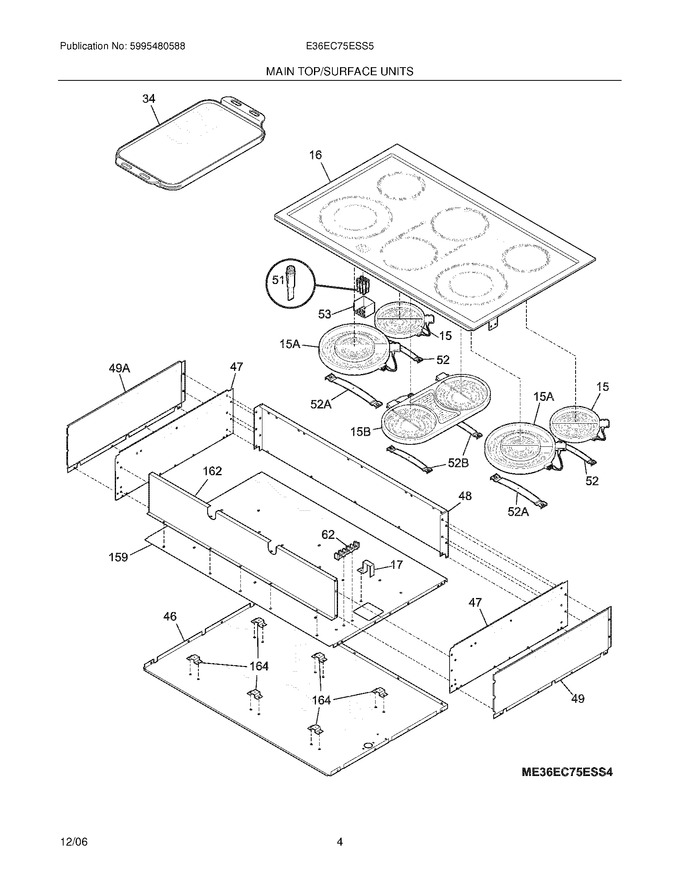

05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318185206		Main Top Assy,frame/glass ,stainless/black		Appelez-nous	-
17	318367801		Bracket,cable		Appelez-nous	-
34	5304495353		Griddle   (Replaces: 318246100)			Immediately	$ 166.84
46	318242804		Panel,base		Appelez-nous	-
47	318241704		Panel,side ,(2)		Appelez-nous	-
48	318241801		Panel,rear		Appelez-nous	-
49	318241900		Panel,interior Side ,rh		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
53	318125963		Bracket,pilot Light		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
159	318242904		Panel,bottom		Appelez-nous	-
162	318245500		Shield,heat		Appelez-nous	-
164	318252901		Support,box ,(6)		Appelez-nous	-
49A	318241901		Panel,interior Side ,lh		Appelez-nous	-
52A	318122010		Spring,element Mtg ,3000w				$ 62.51
52B	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
F15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F15A	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
F15B	318258203		Element,bridge ,1800/2600			Immediately	$ 371.39
F51	318044823		Light,indicator ,125v ,(6)		Appelez-nous	-
NI	318078541		Box & Wires Assy		Appelez-nous	-
NI	318231833		Harness,wiring ,main		Appelez-nous	-
NI	318243208		Harness,wiring ,left Side		Appelez-nous	-
NI	318243309		Harness,wiring ,right Side		Appelez-nous	-
NI	318052195		Harness,wiring ,hot Surface		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318235710		Insulation,pilot Light ,aluminum Foil		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46

    View Diagram in Separate Window       Print Part List
