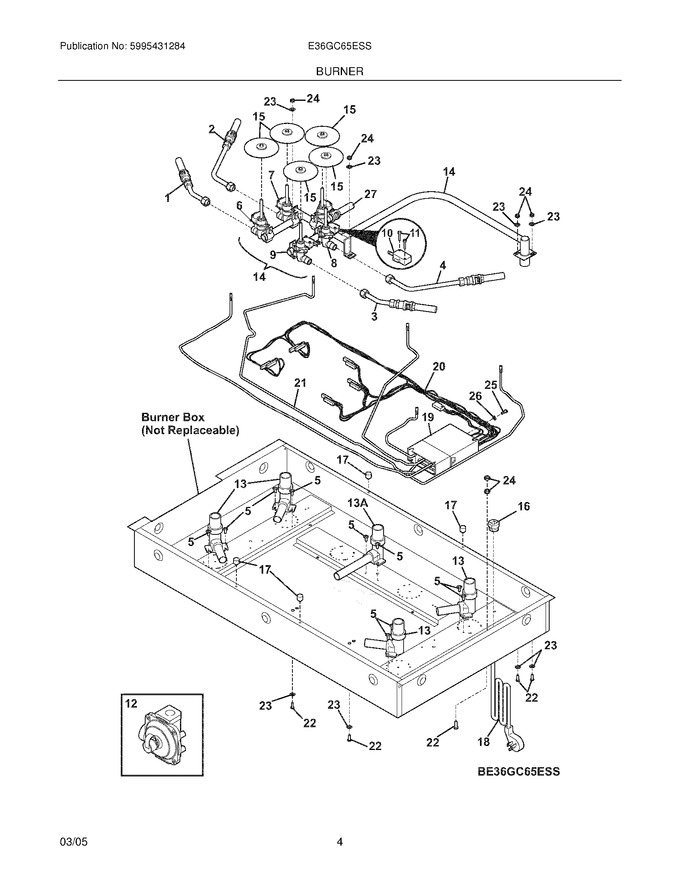

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304446084		Tubing Assembly,burner ,left Front		Appelez-nous	-
2	5304446088		Tubing Assembly,burner ,left Rear		Appelez-nous	-
3	5304446092		Tubing Assembly,burner ,right Front		Appelez-nous	-
4	5304446093		Tubing Assembly,burner ,right Rear		Appelez-nous	-
5	5304446019		Screw,phil Trs ,no.8-3/8 ,(10)		Appelez-nous	-
6	5304446094		Valve Assembly,burner ,left Front ,w/ignite Switch				$ 269.48
7	5304446095		Valve Assembly,burner ,left Rear ,w/ignite Switch				$ 233.47
8	5304446096		Valve Assembly,burner ,right Rear ,w/ignite Switch				$ 235.37
9	5304446097		Valve Assembly,burner ,right Front ,w/ignite Switch		Appelez-nous	-
10	5304446014		Switch,ignitor ,(4)				$ 72.98
11	5304446023		Screw,ignitor Switch ,(8)		Appelez-nous	-
12	5304446036		Regulator,pressure				$ 188.53
13	5304446001		Base,burner ,(4)				$ 180.80
14	5304446086		Manifold,assembly ,w/valves		Appelez-nous	-
15	5304446030		Protector,burner Valve ,spill		Appelez-nous	-
16	5304446017		Bushing,strain Relief		Appelez-nous	-
17	5304446022		Bumper,snap In ,rubber ,(4)		Appelez-nous	-
18	5304446005		Cord,power Supply		Appelez-nous	-
19	5304446087		Module,assembly ,ignitor Spark				$ 486.78
20	5304446089		Harness,wiring		Appelez-nous	-
21	5304446090		Harness,assembly ,ignitor Wire				$ 236.52
22	5304446021		Screw,phil Pan ,no.8-32 X 1/2 ,(5)		Appelez-nous	-
23	5304446024		Washer,no.8 X 7/16 Od ,3/64 T ,zinc ,(8)		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32 ,(6)		Appelez-nous	-
25	5304446020		Screw,phil Pan ,no.8-3/8		Appelez-nous	-
26	5304446016		Washer,nylon		Appelez-nous	-
27	5304446091		Valve Assembly,burner ,center ,w/ignite Switch		Appelez-nous	-
13A	5304446085		Base,burner ,center		Appelez-nous	-
NI	5304446018		Hook & Loop,pair ,2`` X 3``		Appelez-nous	-
NI	5304446027		Washer,burner Valve ,(4)		Appelez-nous	-
NI	5304446083		Conversion Kit,lp Gas		Appelez-nous	-
NI	5304446025		Tool,burner Ring ,removal				$ 126.73

    View Diagram in Separate Window       Print Part List
