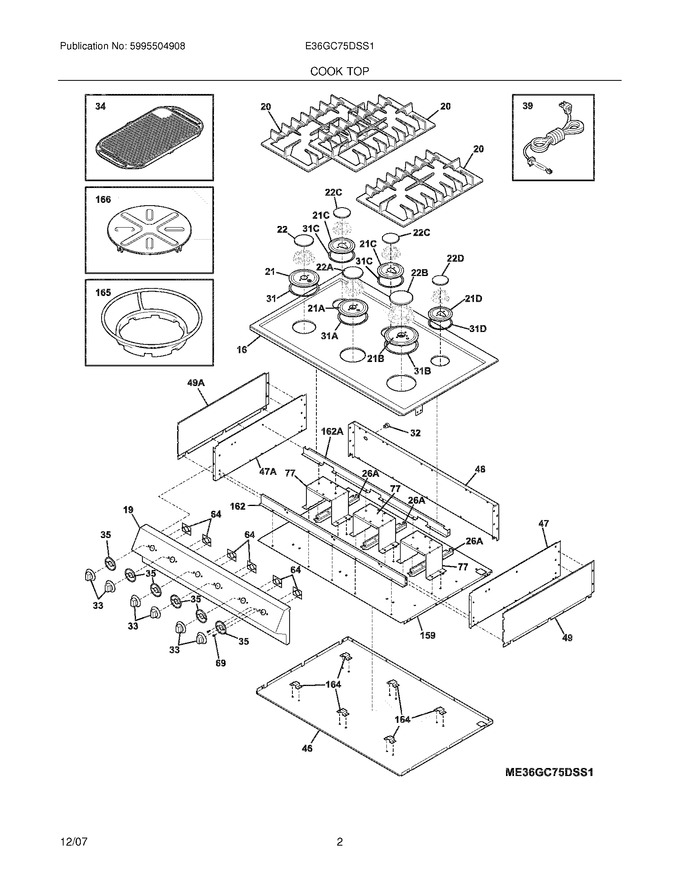

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318185203		Main Top Assy,frame/glass ,stainless/black		Appelez-nous	-
19	318234900		Panel,control ,stainless		Appelez-nous	-
20	318231600		Grate,burner ,black ,(3)		Appelez-nous	-
21	316241704		Skirt,12k Burner ,black				$ 79.86
22	316213605		Cap,12k Burner ,black				$ 143.06
31	316242001		Seal,12k Burner				$ 23.06
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
33	318242204		Knob,control ,(6)				$ 163.85
34	318251500		Griddle		Appelez-nous	-
35	318251910		Skirt,(6)		Appelez-nous	-
39	318144002		Cord,service		Appelez-nous	-
46	318242800		Panel,base		Appelez-nous	-
47	318241700		Panel,side ,rh		Appelez-nous	-
48	318241800		Panel,rear		Appelez-nous	-
49	318241900		Panel,interior Side ,rh		Appelez-nous	-
64	318251400		Plate,mtg Bezel		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
77	318245800		Bracket,channel Mtg ,(3)		Appelez-nous	-
159	318242900		Panel,bottom		Appelez-nous	-
162	318245600		Brace,manifold		Appelez-nous	-
164	318252900		Support,box ,(6)		Appelez-nous	-
165	318252100		Ring,wok		Appelez-nous	-
166	316279000		Plate,simmer		Appelez-nous	-
162A	318245700		Cross Rib		Appelez-nous	-
21A	316264903		Skirt,14k Burner ,black				$ 104.69
21B	316264803		Skirt,16/17k Burner ,black				$ 93.35
21C	316241804		Skirt,9.5k Burner ,black ,(2)				$ 84.74
21D	316241904		Skirt,5k Burner ,black				$ 87.75
22A	316219905		Cap,14k Burner ,black				$ 146.53
22B	316271904		Cap,16/17k Burner ,black				$ 206.11
22C	316213505		Cap,9.5k Burner ,black ,(2)				$ 102.30
22D	316206604		Cap,5k Burner ,black				$ 102.69
26A	316242501		Channel,burner Support		Appelez-nous	-
31A	316242000		Seal,14k Burner				$ 73.71
31B	316242004		Seal,16/17k Burner				$ 18.95
31C	316242002		Seal,9.5k Burner				$ 25.02
31D	316242003		Seal,5k Burner				$ 15.17
47A	318241701		Panel,side ,lh				$ 29.30
49A	318241901		Panel,interior Side ,lh		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
