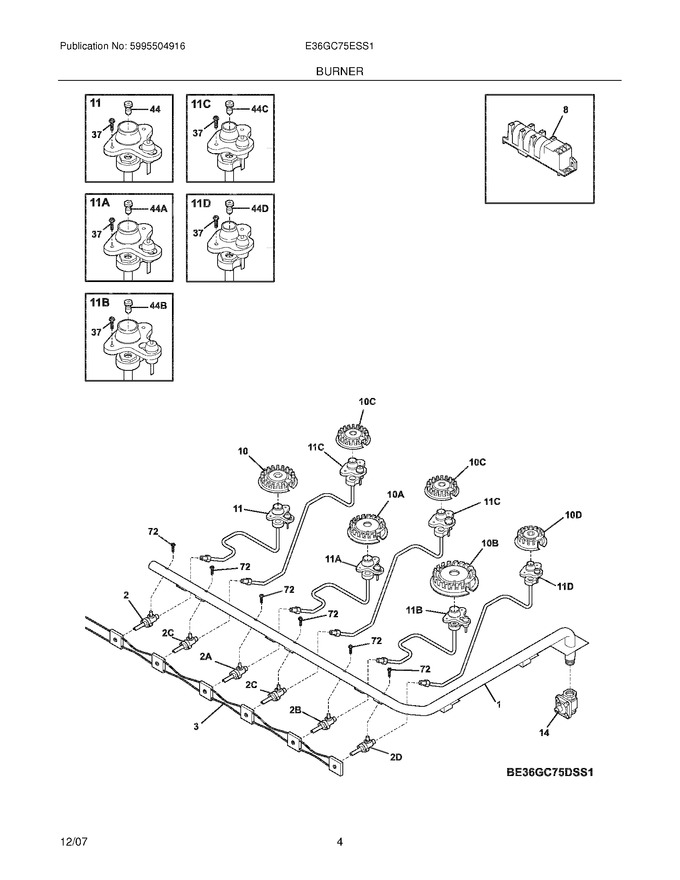

06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237901		Orifice,top Burner ,12k				$ 64.46
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
44A	316237900		Orifice,top Burner ,14k				$ 63.80
44B	316237909		Orifice,top Burner ,17.2k				$ 64.94
44C	316237902		Orifice,top Burner ,9.5k				$ 65.22
44D	316237903		Orifice-top Burner,5k				$ 67.83
F1	318234300		Manifold Pipe		Appelez-nous	-
F10	316212300		Burner,sealed ,12k				$ 105.95
F10A	316223400		Burner,sealed ,14k				$ 94.50
F10B	316223300		Burner,sealed ,16/17k				$ 117.66
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F10D	316206400		Burner,sealed ,5k		Appelez-nous	-
F11	318221326		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11A	318221327		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11B	318221328		Ignitor/orifice Assy.,top Burner ,front				$ 227.33
F11C	318221324		Ignitor/orifice Assy.,top Burner ,rear ,9.5k,w/holder ,tube				$ 219.03
F11D	318221325		Ignitor/orifice Assy.,top Burner ,rear ,5k,w/holder ,tube				$ 139.61
F14	5308007974		Regulator-pressure				$ 309.02
F2	318234023		Valve,top Burner ,12k				$ 121.38
F2A	318234022		Valve,top Burner ,14k				$ 121.38
F2B	318234021		Valve,top Burner ,17k				$ 121.38
F2C	318234024		Valve,top Burner ,9.5k				$ 127.73
F2D	318234025		Valve,top Burner ,5k				$ 121.38
F3	318232602		Wiring Harness,w/igntr Switch		Appelez-nous	-
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	318127416		Lp Conversion Kit				$ 92.40
NI	318243100		Harness,burner Wiring		Appelez-nous	-
NI	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
