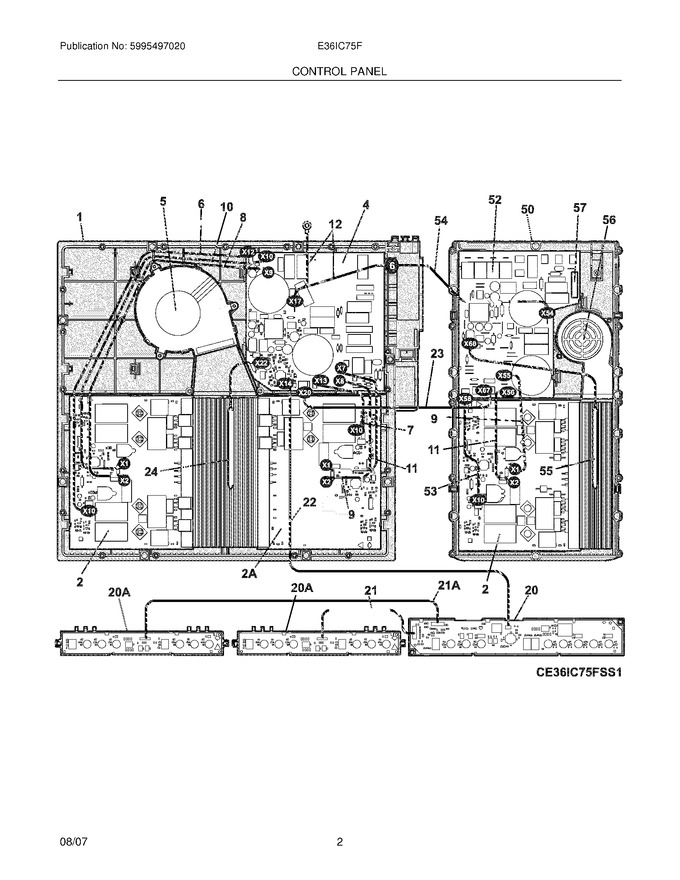

03 - Control Panel


05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329612		Housing Assembly,induction ,genrator ,w/electronics   (Replaces: 318329610)				$ 1,342.22
50	318329620		Housing Assembly,induction ,small ,w/electronics				$ 765.03
F10	318052582		Power Cable Set,generator ,18`` ,blue ,to Filter,x1/x10		Appelez-nous	-
F11	318052579		Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56		Appelez-nous	-
F12	318052593		Ground Wire,w/terminal ,x17/6-housing		Appelez-nous	-
F2	318347100		Generator,circuit Board ,(2) ,2 Zone				$ 512.24
F20	318330821		Touch Control,electronic ,center		Appelez-nous	-
F20A	318330711		Touch Control,cook Zone ,(2) ,electronic		Appelez-nous	-
F21	318083044		Interface Cable,side Control ,to Center		Appelez-nous	-
F21A	318083046		Interface Cable,side Control ,to Center		Appelez-nous	-
F22	318083062		Communication Cable,center Control ,to Filter		Appelez-nous	-
F23	318083048		Communication Cable,filter ,to Filter ,x20/x67		Appelez-nous	-
F24	318349900		Thermal Cut-out,short		Appelez-nous	-
F2A	318347110		Generator,circuit Board ,1 Zone		Appelez-nous	-
F4	5304454971		Filter,circuit Board ,large   (Replaces: 318347000)				$ 788.28
F5	318346900		Cooling Fan Assembly,large		Appelez-nous	-
F52	318347010		Filter,circuit Board ,small				$ 769.61
F53	318348002		Communication Cable,generator ,8`` ,to Filter,x10/x58		Appelez-nous	-
F54	318052578		Groung Wire,x54/6		Appelez-nous	-
F55	318349910		Thermal Cut-out,long		Appelez-nous	-
F56	318346910		Cooling Fan Assembly,small				$ 679.21
F57	318373300		Fuse,fast Blow ,20a				$ 59.54
F6	318348001		Communication Cable,generator ,18`` ,to Filter,x10/x12		Appelez-nous	-
F7	318348000		Communication Cable,generator ,6`` ,to Filter,x10/x13		Appelez-nous	-
F8	318052581		Power Cable Set,generator ,18`` ,black ,to Filter,x2/x9		Appelez-nous	-
F9	318052580		Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55		Appelez-nous	-
NI	318052587		Harness,wiring ,l1, L2 & Ground		Appelez-nous	-
NI	318368900		Frame,display ,single ,(5)		Appelez-nous	-
NI	318368910		Frame,display ,double		Appelez-nous	-
