SELECT A DIAGRAM

01 - Cover

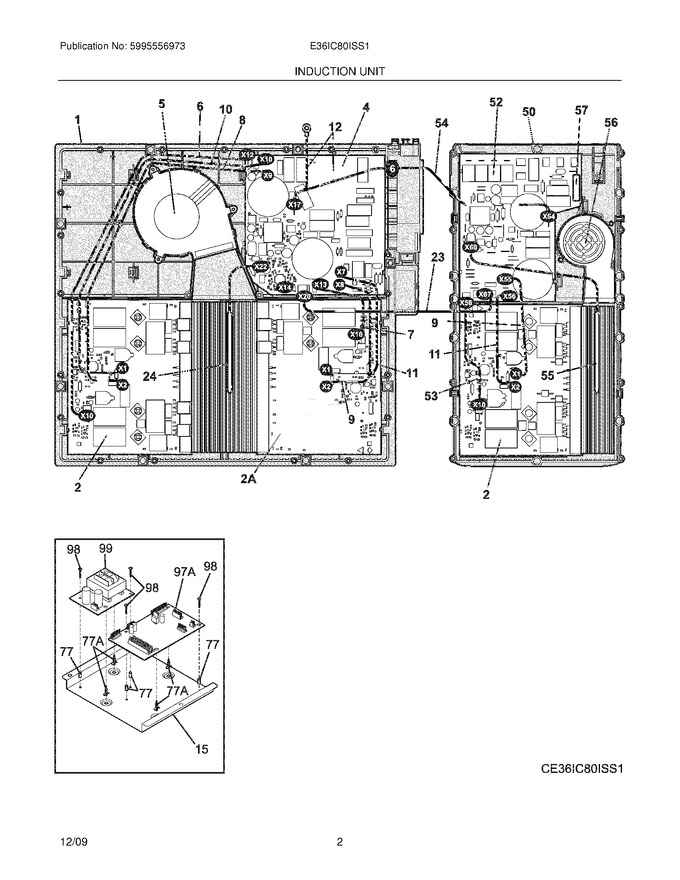

03 - Induction Unit


05 - Main Top/surface Units


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329613		Housing Assembly,induction ,genrator ,w/electronics				$ 1,212.18
15	318537301		Panel,mounting ,boards		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F10	318052582		Power Cable Set,filter ,18`` ,blue ,to Generator,x8/x2		Appelez-nous	-
F11	318052579		Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56		Appelez-nous	-
F12	318532141		Ground Wire,5.5``		Appelez-nous	-
F2	318347103		Generator,circuit Board ,(2) ,2 Zone				$ 788.29
F23	318402337		Harness,wiring		Appelez-nous	-
F24	318349900		Thermal Cut-out,short		Appelez-nous	-
F2A	318347111		Generator,circuit Board ,1 Zone				$ 814.22
F4	5304454971		Filter,circuit Board ,large   (Replaces: 318347000)				$ 788.28
F5	318346900		Cooling Fan Assembly,large		Appelez-nous	-
F50	318329621		Housing Assembly,induction ,small ,w/electronics				$ 1,431.83
F52	318347010		Filter,circuit Board ,small				$ 769.61
F53	318348002		Communication Cable,generator ,8`` ,to Filter,x10/x58		Appelez-nous	-
F54	318052596		Groung Wire,10`` ,x54/6				$ 16.28
F55	318349910		Thermal Cut-out,long		Appelez-nous	-
F56	318346910		Cooling Fan Assembly,small				$ 679.21
F57	318373300		Fuse,fast Blow ,20a				$ 59.54
F6	318348001		Communication Cable,generator ,18`` ,to Filter,x10/x12		Appelez-nous	-
F7	318348000		Communication Cable,generator ,6`` ,to Filter,x10/x13		Appelez-nous	-
F8	318052581		Power Cable Set,filter ,18`` ,black ,to Generator,x7/x1		Appelez-nous	-
F9	318052580		Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55		Appelez-nous	-
F97A	316442068		Board,user Interface ,(uib)				$ 231.68
F99	316435703		Board,power Supply			Immediately	$ 394.48
FNI	318402356		Harness,wiring ,communication				$ 266.18
NI	5304450850		Screw,7-19 X 1/2``		Appelez-nous	-
NI	318341200		Jumper,electronic ,(2)				$ 67.44
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303325170		Nut,keps ,8-32 ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
