SELECT A DIAGRAM

01 - Console


02 - Tub, Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness

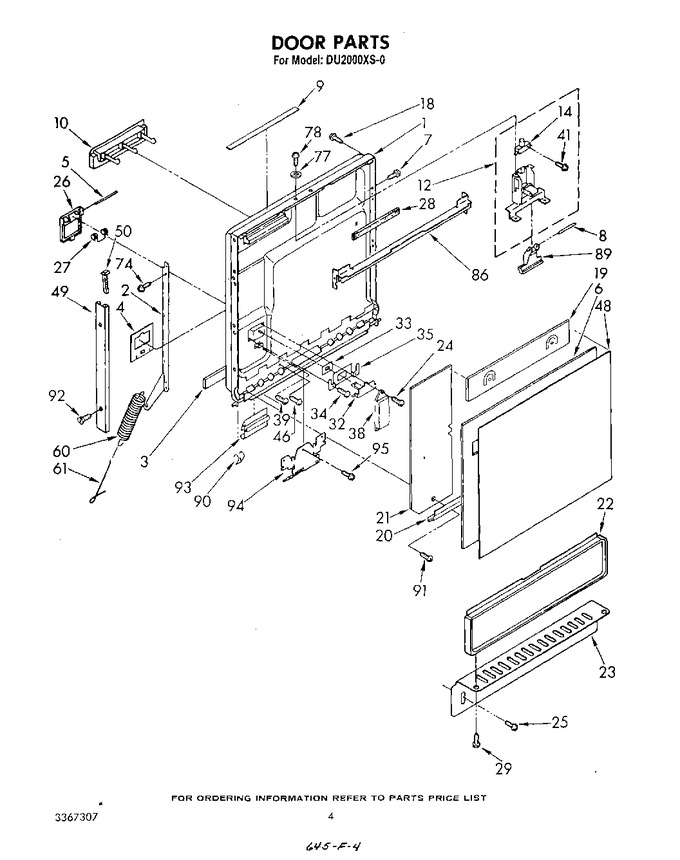

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367387		Door, Inner (includes Illus. 4)		Appelez-nous	-
2	3367201		Support, Door (r.h.)		Appelez-nous	-
2	3367202		Support, Door (l.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	303978		Barrier		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	301957		Spacer, Corrugated		Appelez-nous	-
7	WP489069		Screw, 8-18 X 1/2 (2)   (Replaces: 304392)			Immediately	$ 7.07
8	300234		Pin, Pivot (2)		Appelez-nous	-
9	LIT302081		Label, User Guide		Appelez-nous	-
10	300246		Screen, Vent		Appelez-nous	-
12	3367058		Latch Assembly		Appelez-nous	-
14	16600		Switch, Interlock (alternate)   (Replaces: 303885)				$ 6.18
14	16600		Switch, Interlock (alternate)   (Replaces: 300232)				$ 6.18
14	303075		Switch, Interlock (alternate)		Appelez-nous	-
18	304233		Screw, 8 X 1-7/8 Truss Head Hi-lo (2)		Appelez-nous	-
19	303908		Barrier, Console		Appelez-nous	-
20	304047		Panel, Edging (door)		Appelez-nous	-
21	303906		Barrier, Door		Appelez-nous	-
22	304410		Panel, Access		Appelez-nous	-
23	3367470		Plate, Toe		Appelez-nous	-
24	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (1)   (Replaces: 304231)			Immediately	$ 6.98
25	WP90767		Screw, 8-18 X 3/8 Hex Washer Head Slotted Tapping (2)   (Replaces: 300890)			Immediately	$ 7.04
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
28	719860		Baffle		Appelez-nous	-
29	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 6.98
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (2)   (Replaces: 304231)			Immediately	$ 6.98
35	300104		Retainer		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
39	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (1)   (Replaces: 304231)			Immediately	$ 6.98
41	301582		Screw, 6-32 X 1 (1)		Appelez-nous	-
46	WP90767		Screw, 8a X 3/8 Hex Head Tapping Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
48	N/A		Panel, Front		Appelez-nous	-
49	3367207		Trim, Door (l.h.)		Appelez-nous	-
49	3367206		Trim, Door R.h.		Appelez-nous	-
50	3367172		Clip, Trim Guard (2)		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
74	WP488627		Screw, 8-18 X 1/2 Oval Head Serration Lock (6)   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
78	WP90767		Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
86	304391		Rail, Support		Appelez-nous	-
89	304407		Lever, Release		Appelez-nous	-
90	301857		Clip, Wire		Appelez-nous	-
91	W11693756		Screw, 8-18 X 1/2 (2)   (Replaces: 688983)			Immediately	$ 12.65
92	3367288		Screw, 8 X 1/2 Oval Head (4)		Appelez-nous	-
93	303121		Retainer, Clip		Appelez-nous	-
94	303362		Shield, Harness		Appelez-nous	-
95	303090		Screw, 8-18 X 5/8 Hex Head Tapping		Appelez-nous	-
