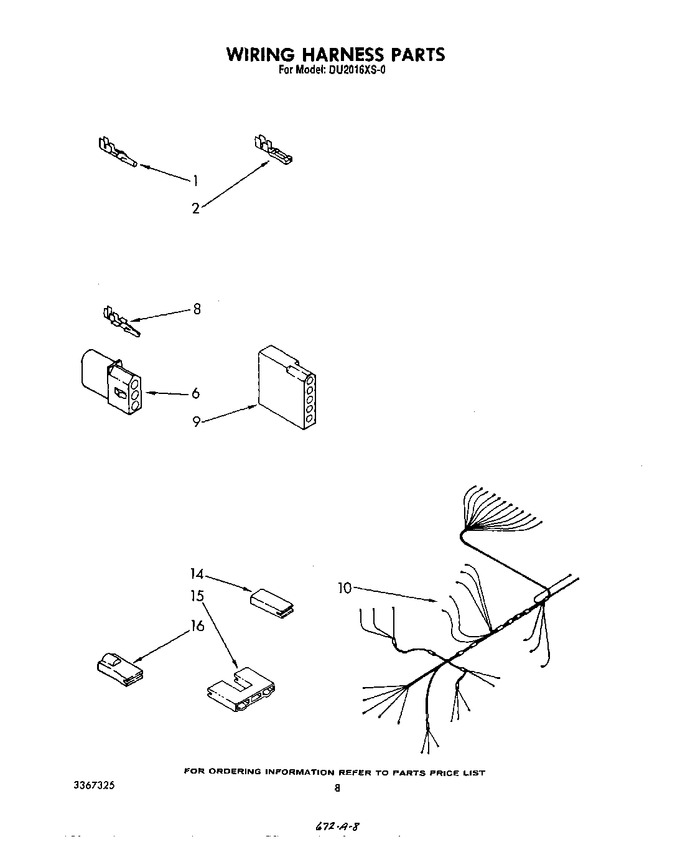

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 2 | 352088 | Terminal, Female |
|
$ 5.83 | |||||
| 6 | 353425 | Receptacle, Terminal (3-way) |
|
- | |||||
| 8 | 94613 | Terminal |
|
- | |||||
| 9 | 719585 | Receptacle (5-circuit) |
|
- | |||||
| 10 | 3367693 | Harness, Wiring |
|
- | |||||
| 14 | 301219 | Connector Block |
|
- | |||||
| 15 | 374230 | Connector Block (alternate) |
|
- | |||||
| 15 | 300708 | Connector, Block (alternate) |
|
- | |||||
| 16 | 358736 | Insulator |
|
- |
