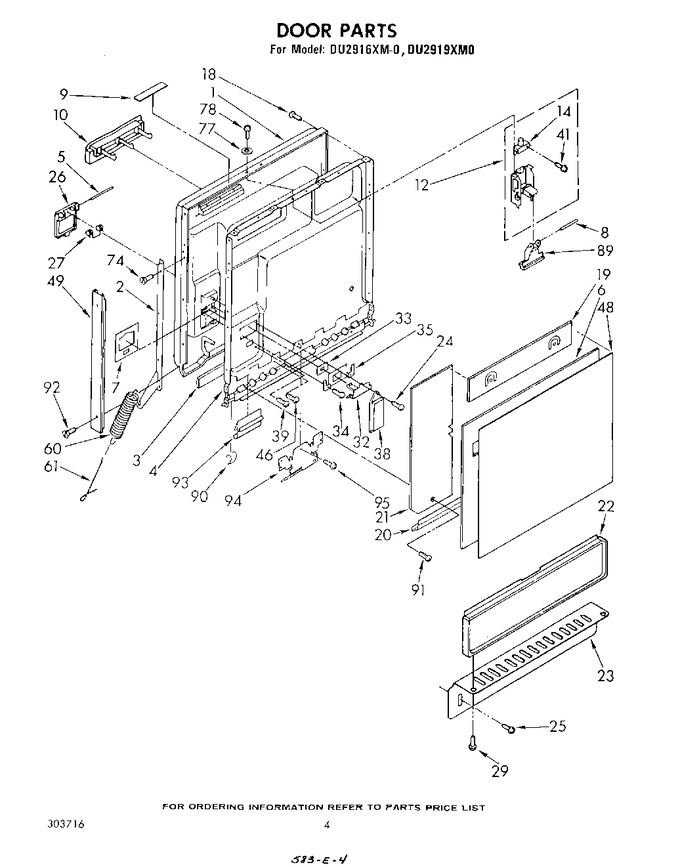

03 - Door , Literature And Optional


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303266		Door, Inner (includes Illus. 4)		Appelez-nous	-
2	303196		Support Door (l.h.)		Appelez-nous	-
2	303197		Support, Door (r.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	303202		Liner, Door		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	301957		Spacer, Corrugated		Appelez-nous	-
7	303978		Barrier		Appelez-nous	-
8	300234		Pin, Pivot (2)		Appelez-nous	-
9	LIT302081		Label, User Guide		Appelez-nous	-
10	300246		Screen, Vent		Appelez-nous	-
12	300235		Latch Assembly		Appelez-nous	-
14	16600		Switch, Interlock (alternate)   (Replaces: 303885)				$ 6.18
14	303075		Switch, Interlock (alternate)		Appelez-nous	-
14	16600		Switch, Interlock (alternate)   (Replaces: 300232)				$ 6.18
18	WP488729		Screw, 8 X 1/2 Truss Head Tapping (2)   (Replaces: 301458)			Immediately	$ 7.01
19	303222		Barrier, Console		Appelez-nous	-
20	304047		Panel, Edging (door)		Appelez-nous	-
21	303223		Barrier, Door		Appelez-nous	-
22	302135		Panel, Access		Appelez-nous	-
23	303144		Plate, Toe		Appelez-nous	-
24	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (1)		Appelez-nous	-
25	WP90767		Screw, 8-18 X 3/8 Hex Washer Head Slotted Tapping (2)   (Replaces: 300890)			Immediately	$ 7.04
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
29	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 6.98
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (2)		Appelez-nous	-
35	300104		Retainer		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
39	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (1)		Appelez-nous	-
41	301582		Screw, 6-32 X 1 (1)		Appelez-nous	-
46	WP90767		Screw, 8a X 3/8 Hex Head Tapping Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
49	303501		Trim, Door (2)		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
74	WP488627		Screw, 8-18 X 1/2 Oval Head Serration Lock (6)   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
78	WP90767		Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
89	300230		Lever, Release		Appelez-nous	-
90	301857		Clip, Wire		Appelez-nous	-
91	W11693756		Screw, 8-18 X 1/2 (2)   (Replaces: 688983)			Immediately	$ 12.65
92	302251		Screw, 8 X 1/2 Oval Head (4)		Appelez-nous	-
93	303121		Retainer, Clip		Appelez-nous	-
94	303362		Shield, Harness		Appelez-nous	-
95	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
95	285368		Platinum (uncut)		Appelez-nous	-
95	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
95	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
95	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
95	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
95	261890		Golden Harvest		Appelez-nous	-
95	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)			Immediately	$ 51.34
95	285365		Toast		Appelez-nous	-
95	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
95	350942		Primer (white)   (Replaces: 206922)				$ 80.69
95	350941		Leveler (thinner)		Appelez-nous	-
95	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
95	799340		Black (uncut)		Appelez-nous	-
95	261891		Golden Harvest (uncut)		Appelez-nous	-
95	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
95	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
95	WP90767		Screw, 8a X 3/8 Hex Head Tapping   (Replaces: 90767)			Immediately	$ 7.04
95	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
95	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	677821		Compactor   (Replaces: LIT677821)				$ 31.51
	LIT677967		Dishwasher		Appelez-nous	-
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	LIT303716		List, Parts		Appelez-nous	-
	LIT303819		Guide, Use & Care		Appelez-nous	-
	LIT303310		Instructions, Installation		Appelez-nous	-
	LIT304111		Tag, Energy Fact		Appelez-nous	-
	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	LIT677813		Automatic Washer (belt Drive)		Appelez-nous	-
	675476		Vinyl Touch Up (blue)		Appelez-nous	-
