Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 300754 Bracket, Console Appelez-nous -
2 303458 Panel, Escutcheon Appelez-nous -
3 301074 Motor, Timer Appelez-nous -
4 301536 Relay, Start (alternate) Appelez-nous -
4 301620 Relay, Start (alternate) Appelez-nous -
4 300516 Relay, Start (alternate) Appelez-nous -
5 5500-200 Insert, Console   (Replaces: 304149) In-Stock Immediately $ 54.85

6 303281 Timer Appelez-nous -
7 W10759522 Screw (4)   (Replaces: 162402) Special Order $ 6.98

8 339494 Screw (2) Appelez-nous -
9 WP90767 Screw, 8-18 X 3/8 (4)   (Replaces: 300890) In-Stock Immediately $ 7.04

11 WP4314961 Switch, Rocker   (Replaces: 302100) Special Order $ 80.53

15 WP489128 Screw,   (Replaces: 98209) Special Order $ 9.79

28 300996 Dial, Indicator Appelez-nous -
30 301010 Knob Appelez-nous -
34 WP487353 Screw, 6-20 X 3/8 (3)   (Replaces: 301502) Special Order $ 6.81


    View Diagram in Separate Window     Print Icon   Print Part List

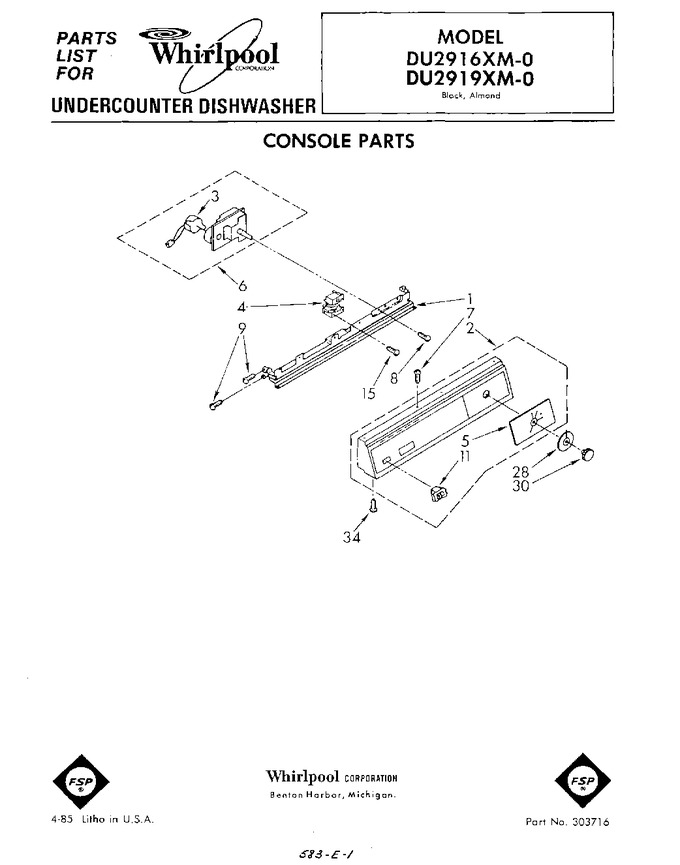

Diagram for DU2919XM0
