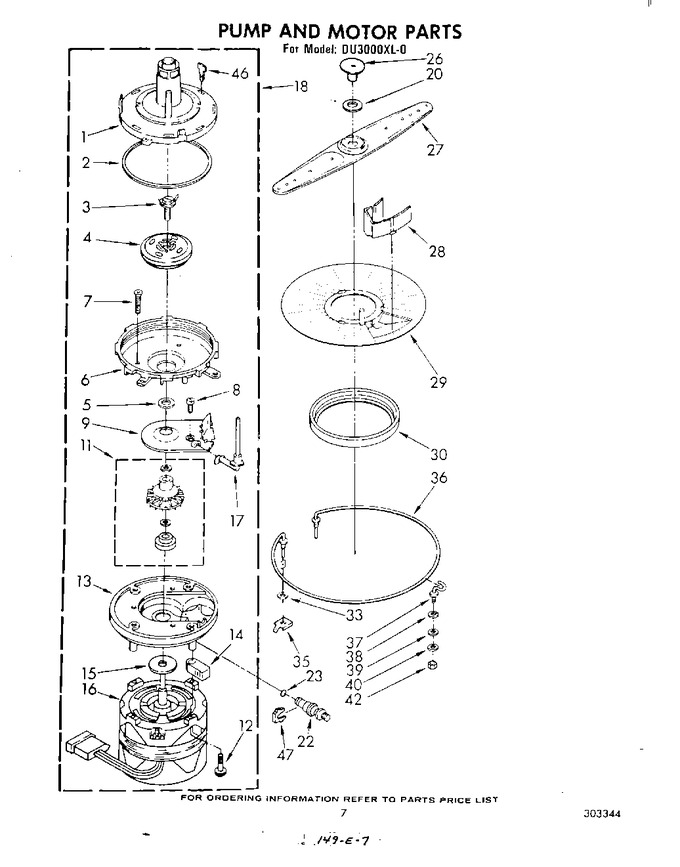

SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301558		Pump Housing, Upper		Appelez-nous	-
2	718259		Seal, Ring		Appelez-nous	-
3	718326		Screw, 10-32 X .75		Appelez-nous	-
4	719949		Impeller		Appelez-nous	-
5	301619		Spacer		Appelez-nous	-
6	718222		Pump Housing, Lower				$ 51.09
7	718257		Screw, 8-18 X 1.38		Appelez-nous	-
8	WP9741232		Screw, 8-18 X .62   (Replaces: 718258)			Immediately	$ 4.56
9	300084		Coverplate		Appelez-nous	-
11	675297		Kit, Impeller Drain		Appelez-nous	-
12	301817		Screw, 13-16 (4)		Appelez-nous	-
13	301812		Base, Pump		Appelez-nous	-
14	718260		Support, Pump (4)		Appelez-nous	-
15	W10909679		Slinger (use With)   (Replaces: 303252)				$ 19.49
15	W10909679		Slinger (301811 Motor) (use With)   (Replaces: 719583)				$ 19.49
16	301811		Motor (emerson)		Appelez-nous	-
16	301858		Motor (general Electric)		Appelez-nous	-
17	718629		Bleeder Assembly		Appelez-nous	-
18	301860		Pump & Motor Assembly (alternate)		Appelez-nous	-
18	301829		Pump & Motor Assembly (alternate)		Appelez-nous	-
18	301861		Pump & Motor Assembly (alternate)		Appelez-nous	-
20	719576		Bearing, Nozzle				$ 7.48
22	675238		Valve, Check   (Replaces: 300800)				$ 78.04
23	95080		``o`` Ring		Appelez-nous	-
26	302816		Cap, Nozzle		Appelez-nous	-
27	302767		Spray Arm, Lower		Appelez-nous	-
28	303069		Guard, Screen		Appelez-nous	-
29	303070		Screen, Sump		Appelez-nous	-
30	717000		Gasket, Pump				$ 78.98
33	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.47
35	718537		Nut, 7/16-20 (2)		Appelez-nous	-
36	719687		Heater (alternate)		Appelez-nous	-
36	302562		Heater (alternate)		Appelez-nous	-
36	717141		Heater (alternate)		Appelez-nous	-
36	302113		Heater (alternate)		Appelez-nous	-
37	717096		Support, Heater (2)		Appelez-nous	-
38	717289		Washer, Retainer (2)		Appelez-nous	-
39	14351		Washer (2)		Appelez-nous	-
40	711284		Washer (2)		Appelez-nous	-
42	9420162		Nut, 10-32 (2)		Appelez-nous	-
46	301936		Key, Pump Housing		Appelez-nous	-
47	300797		Retainer, Check Valve		Appelez-nous	-
	301858		Motor (general Electric)		Appelez-nous	-
