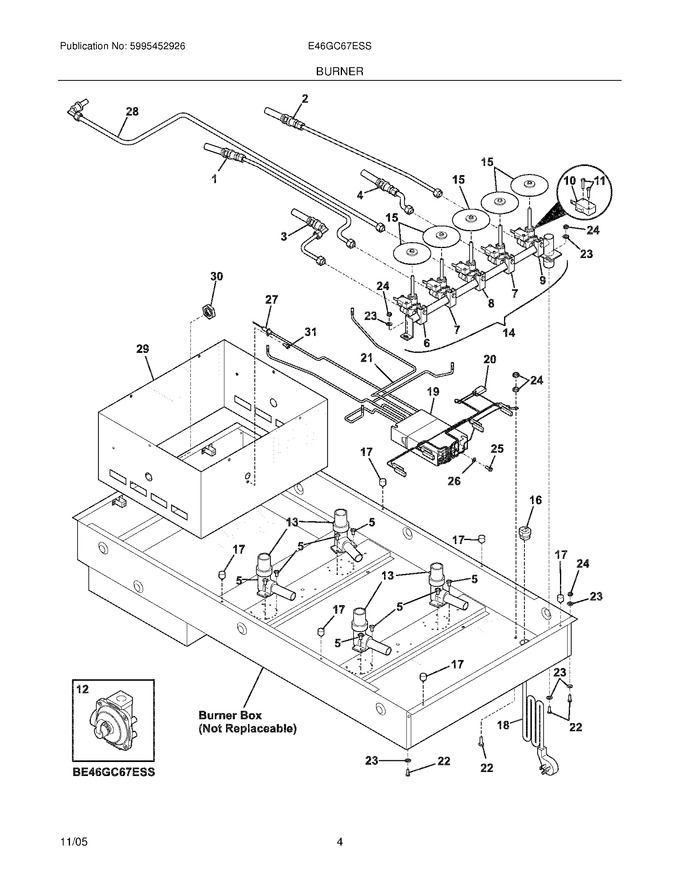

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304446121		Tubing Assembly,burner ,left Front		Appelez-nous	-
2	5304446123		Tubing Assembly,burner ,left Rear		Appelez-nous	-
3	5304446138		Tubing Assembly,burner ,right Front		Appelez-nous	-
4	5304446140		Tubing Assembly,burner ,right Rear		Appelez-nous	-
5	5304446019		Screw,phil Trs ,no.8-3/8 ,(18)		Appelez-nous	-
6	5304446135		Valve Assembly,burner ,right Front ,w/ignite Switch		Appelez-nous	-
7	5304446141		Valve Assembly,burner ,left Front ,right Rear,(2) ,w/ignite Switch		Appelez-nous	-
8	5304446115		Valve Assembly,grill Burner ,w/ignite Switch		Appelez-nous	-
9	5304446128		Valve Assembly,burner ,left Rear ,w/ignite Switch		Appelez-nous	-
10	5304446014		Switch,ignitor ,(5)				$ 72.98
11	5304446023		Screw,ignitor Switch ,(10)		Appelez-nous	-
12	5304446036		Regulator,pressure				$ 188.53
13	5304446001		Base,burner ,(4)				$ 180.80
14	5304446130		Manifold,assembly ,w/valves		Appelez-nous	-
15	5304446030		Protector,burner Valve ,(5) ,spill		Appelez-nous	-
16	5304446017		Bushing,strain Relief		Appelez-nous	-
17	5304446022		Bumper,snap In ,rubber ,(6)		Appelez-nous	-
18	5304446005		Cord,power Supply		Appelez-nous	-
19	5304446087		Module,assembly ,ignitor Spark				$ 486.78
20	5304446147		Wiring Harness		Appelez-nous	-
21	5304446118		Harness,assembly ,ignitor Wire				$ 208.63
22	5304446021		Screw,phil Pan ,no.8-32 X 1/2 ,(3)		Appelez-nous	-
23	5304446024		Washer,no.8 X 7/16 Od ,3/64 T ,zinc ,(6)		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32 ,(9)		Appelez-nous	-
25	5304446020		Screw,phil Pan ,no.8-3/8		Appelez-nous	-
26	5304446016		Washer,nylon		Appelez-nous	-
27	5304446114		Ignitor,grill		Appelez-nous	-
28	5304446111		Tubing Assembly,burner ,grill		Appelez-nous	-
29	5304446132		Module Box		Appelez-nous	-
30	5304446133		Nut		Appelez-nous	-
31	5304446134		Screw,phil Wafer ,no.8 X 3/8``				$ 8.49
NI	5304446025		Tool,burner Ring ,removal				$ 126.73
NI	5304446018		Hook & Loop,pair ,2`` X 3``		Appelez-nous	-
NI	5304446126		Lp Conversion Kit		Appelez-nous	-
NI	5304446027		Washer,burner Valve ,(6)		Appelez-nous	-
