SELECT A DIAGRAM

01 - Cover

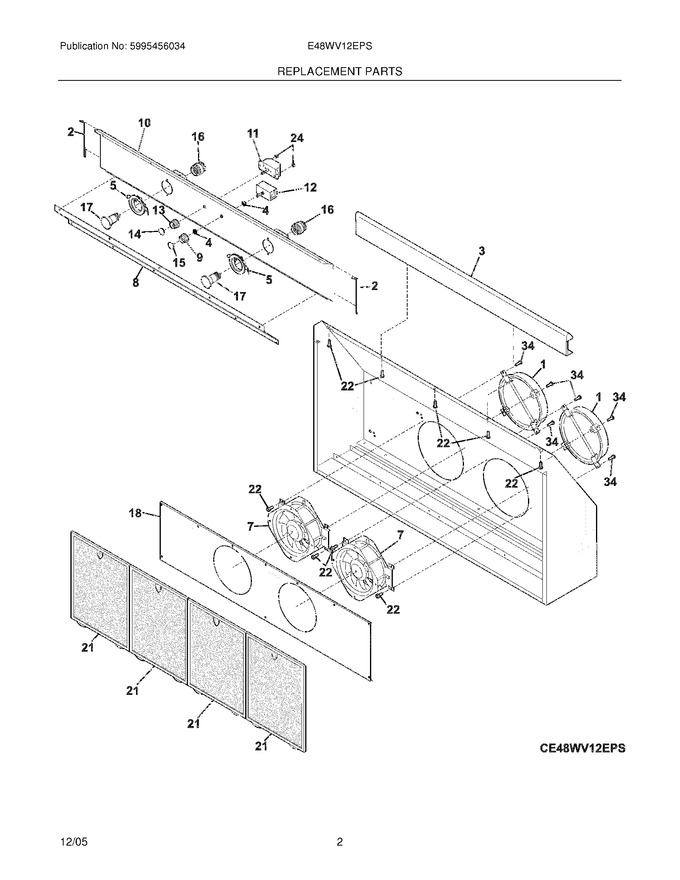

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452403		Damper Assembly,8``		Appelez-nous	-
2	5304453500		Trim,edge		Appelez-nous	-
3	5304452410		Bullnose Assembly,48``		Appelez-nous	-
4	5304452450		Nut,hex ,3/8-24 ,brass		Appelez-nous	-
5	5304452463		Trim,lamp		Appelez-nous	-
8	5304452419		Front,grime Shield ,48``		Appelez-nous	-
9	5304453501		Knob,light				$ 36.91
10	5304453506		Panel,control Assy ,48``		Appelez-nous	-
13	5304452426		Knob,fan				$ 44.65
14	5304452427		Insert,knob ,fan		Appelez-nous	-
15	5304452428		Insert,knob ,light				$ 20.11
18	5304452432		Shield,grime ,48``		Appelez-nous	-
21	5304452435		Filter,13.31`` X 11.87``				$ 273.05
22	5304453502		Screw,phil Trs ,no.8 X 3/8		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
34	5304452454		Screw,no.8 X .375``				$ 9.88
F11	5304452424		Control,speed ,8 Amp				$ 385.77
F12	5304452425		Switch,dimmer ,light				$ 316.41
F16	5304452429		Holder,lamp				$ 92.87
F17	5304448674		Lamp,halogen				$ 263.30
F7	5304452416		Fan Motor Assembly,ebm				$ 556.70
NI	5304453503		Harness,light Liner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
