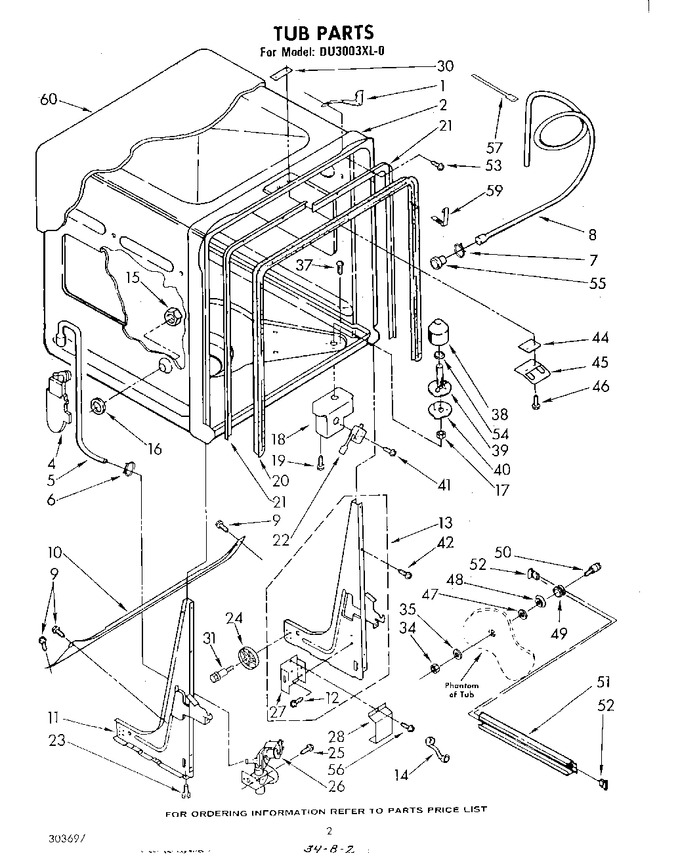

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300796 | Bracket, Mounting (2) |
|
- | |||||
| 2 | 303110 | Tub Assembly |
|
- | |||||
| 4 | 300974 | Inlet, Water |
|
- | |||||
| 5 | 301054 | Hose, Inlet |
|
$ 0.68 | |||||
| 6 | WP596669 | Clamp (Replaces: 301958) |
|
Immediately | $ 7.56 | ||||
| 7 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 8 | 675544 | Hose, Drain (Replaces: 719954) |
|
Immediately | $ 133.29 | ||||
| 9 | WP90767 | Screw, 8a X 3/8 Hex Head Tapping (4) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 10 | 303111 | Brace |
|
- | |||||
| 11 | 302822 | Leg & Hinge Assembly, L.h. |
|
- | |||||
| 12 | 718178 | Screw, 8-32 X 3/8 Hex Washer Head Slotted Tapping Ground (1) |
|
- | |||||
| 13 | 302823 | Leg & Hinge Assembly, R.h. |
|
- | |||||
| 14 | 717563 | Relief, Strain |
|
- | |||||
| 15 | 713799 | Nut, 7/8-16 Polypropylene (1) |
|
- | |||||
| 16 | 713878 | Gasket |
|
- | |||||
| 17 | 717488 | Nut, 1/8 Self-threading (1) |
|
$ 12.83 | |||||
| 18 | 719342 | Bracket, Overflow |
|
- | |||||
| 19 | 718250 | Screw, 8 X 1/2 Hi-lo Blunt Point (3) |
|
- | |||||
| 20 | 302091 | Gasket (alternate) |
|
- | |||||
| 20 | 302090 | Gasket (alternate) |
|
- | |||||
| 21 | 302094 | Retainer (l.h.) |
|
- | |||||
| 21 | 302093 | Retainer (r.h.) |
|
- | |||||
| 22 | 301671 | Switch, Pressure |
|
- | |||||
| 22 | 301672 | Switch, Pressure (alternate) |
|
- | |||||
| 23 | 8193716 | Leveling Leg (Replaces: 302849) |
|
Immediately | $ 76.25 | ||||
| 24 | 302819 | Wheel, Leg |
|
$ 5.65 | |||||
| 25 | WP90767 | Screw, 8a X 3/8 Hex Head Tapping (2) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 26 | DW-66 | Valve, Water Inlet (Replaces: 300453) |
|
$ 63.58 | |||||
| 27 | 300067 | Box, Terminal |
|
- | |||||
| 28 | 300068 | Cover, Terminal Box |
|
$ 30.14 | |||||
| 30 | 303080 | Nut, Twin Spring |
|
- | |||||
| 31 | 302818 | Screw, Shoulder |
|
- | |||||
| 34 | 718829 | Locknut, 10-32 (8) |
|
- | |||||
| 35 | 717624 | Washer (8) |
|
- | |||||
| 37 | WP488729 | Screw, 8-18 X 1/2 Pan Head Tapping (1) (Replaces: 717236) |
|
Immediately | $ 7.01 | ||||
| 38 | 718035 | Float |
|
- | |||||
| 39 | 719967 | Standpipe, Overflow |
|
- | |||||
| 40 | 719966 | Gasket, Overflow |
|
- | |||||
| 41 | 98086 | Screw, 4-40 X 3/4 Hex Head Slotted Thread Cutting (1) |
|
- | |||||
| 42 | WP90767 | Screw, 8a X 3/8 Hex Head Tapping\ \ground (2) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 44 | 712302 | Shim |
|
- | |||||
| 45 | 300233 | Strike |
|
- | |||||
| 46 | WP308685 | Screw, 10-12 X 1/2 (2) (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 47 | 718750 | Washer (8) |
|
- | |||||
| 48 | 718817 | Washer, Cup (8) |
|
- | |||||
| 49 | 300844 | Wheel Assembly (8) |
|
- | |||||
| 50 | 712499 | Screw, Shoulder (8) |
|
- | |||||
| 51 | 300846 | Track (2) |
|
- | |||||
| 52 | 300845 | End Cap, Track (4) |
|
$ 7.63 | |||||
| 53 | 719266 | Screw, 8-18 X 5/8 Indented Hex Head (10) |
|
- | |||||
| 54 | 301662 | Gasket (2) |
|
- | |||||
| 55 | 301656 | Insert, Cup-hose |
|
- | |||||
| 56 | WP90767 | Screw, 8a X 3/8 Hex Head Tapping (1) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 57 | WPW10144763 | Clip, Strap (Replaces: 596490) |
|
$ 6.80 | |||||
| 59 | 301663 | Clip, Gasket |
|
- | |||||
| 60 | 303697 | List, Parts |
|
- | |||||
| 60 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 60 | W11086533 | Sound Shield, Tub (Replaces: 303457) |
|
Immediately | $ 28.17 | ||||
| 60 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 60 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 60 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 60 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 60 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 60 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 60 | 261888 | New Avocado |
|
- | |||||
| 60 | 261890 | Golden Harvest |
|
- | |||||
| 60 | 261886 | Coffee |
|
- | |||||
| 60 | 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
Immediately | $ 51.34 | ||||
| 60 | 285365 | Toast |
|
- | |||||
| 60 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 60 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 60 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 60 | 303549 | Tag, Energy Fact |
|
- | |||||
| 60 | 303311 | Instructions, Installation |
|
- | |||||
| 60 | 303810 | Guide, Use & Care |
|
- | |||||
| 60 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 60 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 60 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 60 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 60 | 799640 | Kit, Epoxy Patch (white) |
|
- | |||||
| 799340 | Black (uncut) |
|
- | ||||||
| 285368 | Xplatinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 261887 | Xcoffee (uncut) |
|
- | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 261889 | Xnew Avocado (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
